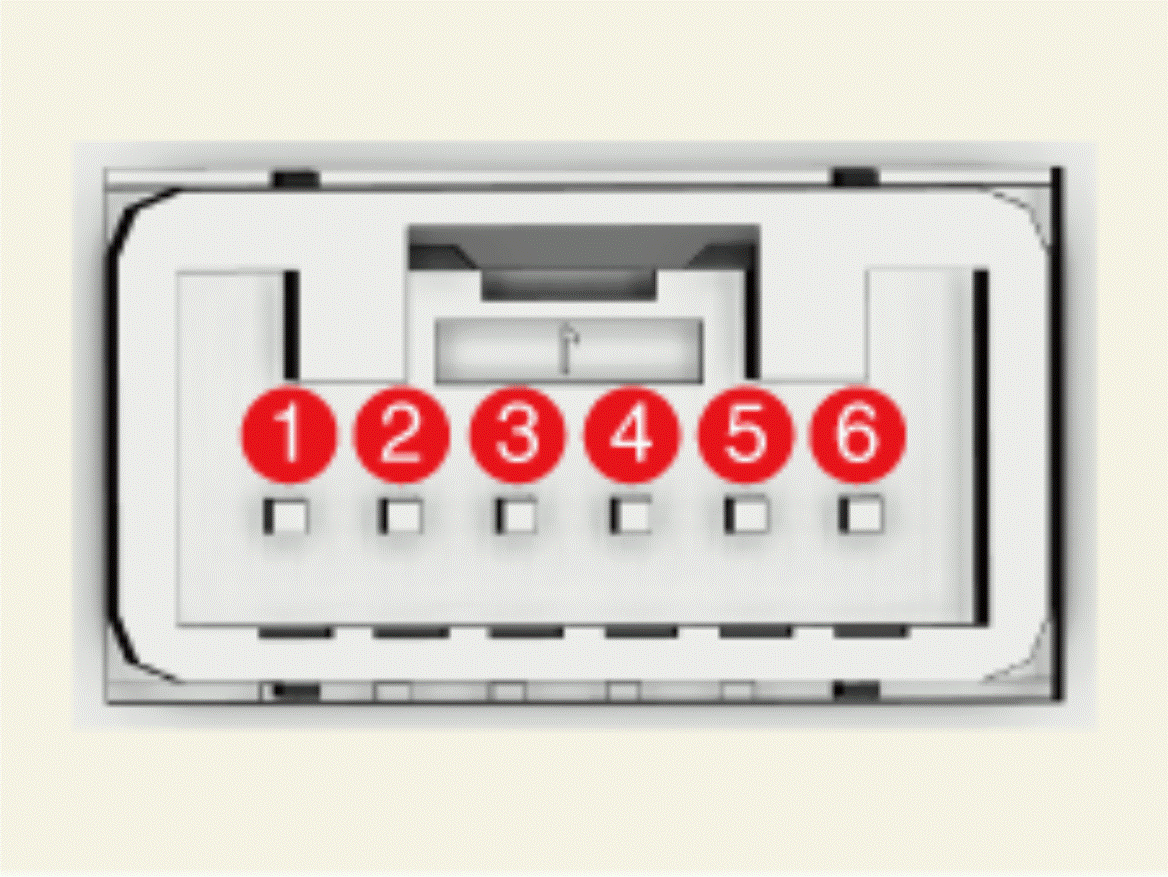

Connector	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	Trip switch 1 (+)
2	Trip switch 2 (+)
3	Illumination (+)
4	-
5	Illumination (-)
6	Trip switch (-)

Courtesy of KIA MOTORS AMERICA, INC.

1

Trip switch 1 (+)

2

Trip switch 2 (+)

3

Illumination (+)

4

-

5

Illumination (-)

6

Trip switch (-)
