Subwoofer Speaker

  1. Remove the luggage side trim [RH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

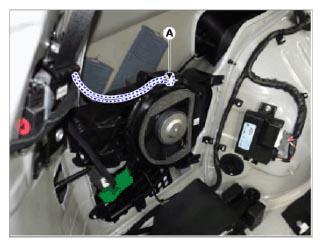

  2. Disconnect the subwoofer speaker connector (A).
    G15710081Courtesy of KIA MOTORS AMERICA, INC.

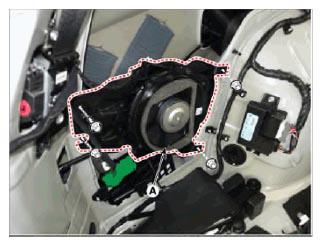

  3. Remove the subwoofer speaker (A) after removing the bolt and nuts.
G15710082Courtesy of KIA MOTORS AMERICA, INC.
