Kia
>>
2024
>>
Telluride SX X-Line
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
AVNT System
>>
Speaker
>>
Removal & Installation
>>
Removal
>>
Rear Tweeter Speaker
Rear Tweeter Speaker
Remove the rear door trim.
(Refer to Body - "
REAR DOOR TRIM
")

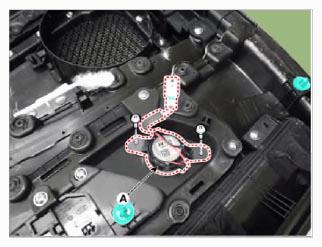

Remove the rear tweeter speaker (A) after removing the screws.
Courtesy of KIA MOTORS AMERICA, INC.
