Rear Speaker

  1. Remove the luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

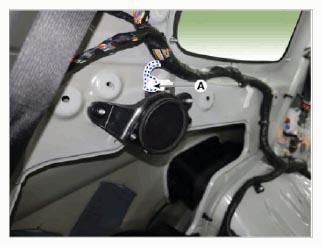

  2. Disconnect the rear speaker connector (A).
    G15710079Courtesy of KIA MOTORS AMERICA, INC.

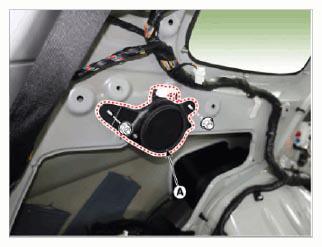

  3. Remove the rear speaker (A) after removing the nuts.
G15710080Courtesy of KIA MOTORS AMERICA, INC.
