Front Center Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front center speaker grille.

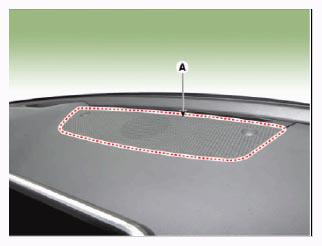

    1. Remove the front center speaker grille (A).
      G15710068Courtesy of KIA MOTORS AMERICA, INC.

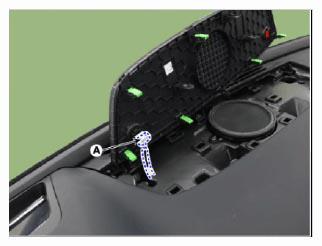

    2. Disconnect the auto light sensor connector (A).
    G15710069Courtesy of KIA MOTORS AMERICA, INC.

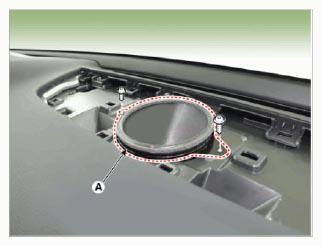

  3. Remove the front center speaker (A) after removing the screws.
    G15710070Courtesy of KIA MOTORS AMERICA, INC.

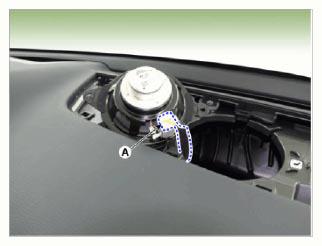

  4. Disconnect the front center speaker connector (A).
    G15710071Courtesy of KIA MOTORS AMERICA, INC.
