Multimedia Jack Assembly

  1. Remove the console upper cover.

    (Refer to Body - "CONSOLE UPPER COVER ")

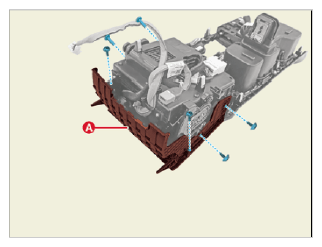

  2. Remove the console tray cover (A) after removing the screws.
    G15710065Courtesy of KIA MOTORS AMERICA, INC.

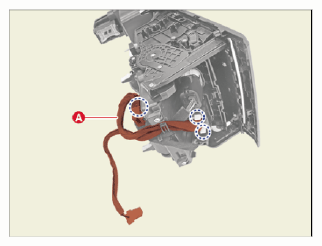

  3. Remove the multimedia jack assembly (A).
    G15710066Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

G15335389Courtesy of KIA MOTORS AMERICA, INC.
G15710067Courtesy of KIA MOTORS AMERICA, INC.
