Removal & Installation: Removal

  1. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

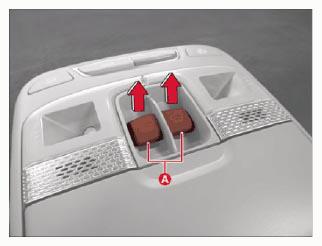

  2. Remove the sunroof switch knobs (A).
    G15710059Courtesy of KIA MOTORS AMERICA, INC.

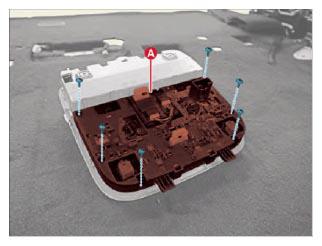

  3. Remove the overhead console board (A) after removing the screws.
    G15710060Courtesy of KIA MOTORS AMERICA, INC.

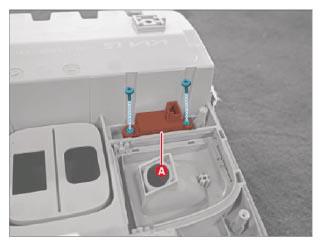

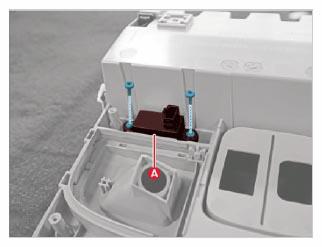

  4. Remove the handsfree mic (A) after removing the screws.
G15710061Courtesy of KIA MOTORS AMERICA, INC.
G15710062Courtesy of KIA MOTORS AMERICA, INC.
