Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> AVNT System >> External AMP >> Removal & Installation >> Removal

Removal & Installation: Removal

  1. Disconnect the negative (-) battery terminal.

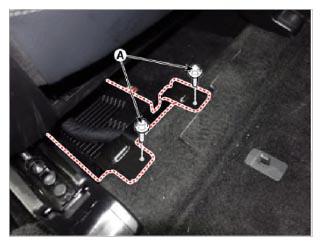

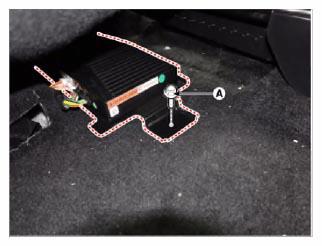

  2. Remove the external amplifier bolts (A).
    G15710056Courtesy of KIA MOTORS AMERICA, INC.
    G15710057Courtesy of KIA MOTORS AMERICA, INC.

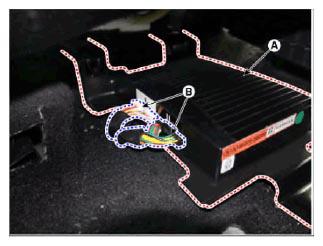

  3. Remove the external amplifier after disconnecting the connectors (B).
G15710058Courtesy of KIA MOTORS AMERICA, INC.
