Roof Antenna
- Remove the roof trim assembly.
(Refer to Body - "ROOF TRIM ASSEMBLY ")

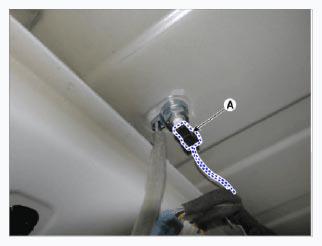

- Disconnect the roof antenna connector (A).

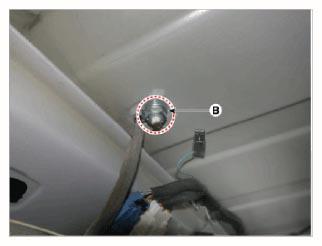

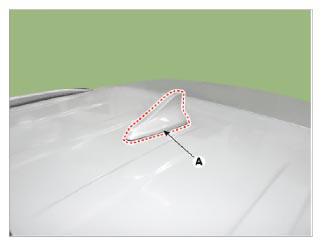

- Remove the roof antenna (A) after removing the nut (B).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)
