Crash Pad Antenna

  1. Remove the cluster.

    (Refer to Indicators and Gauges - "CLUSTER ")

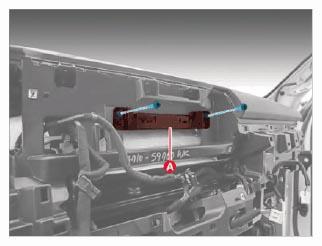

  2. Remove the crash pad antenna (A) after removing the screws.
    G15710041Courtesy of KIA MOTORS AMERICA, INC.

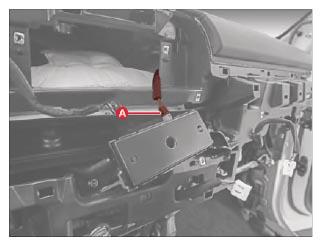

  3. Disconnect the crash pad antenna connector (A).
G15710042Courtesy of KIA MOTORS AMERICA, INC.
