Removal & Installation: Removal

  1. Remove the crash pad garnish [Passenger's side].

    (Refer to Body - "CRASH PAD GARNISH ")

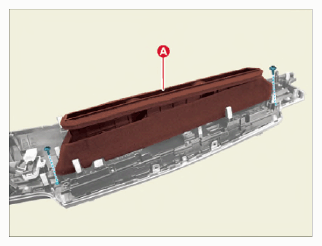

  2. Remove the center air vent duct (A) after removing the screws.
    G15710051Courtesy of KIA MOTORS AMERICA, INC.

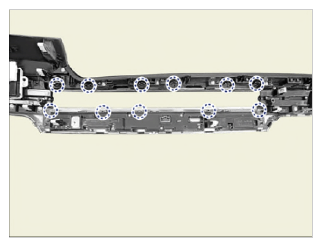

    G15710052Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

    G15335383Courtesy of KIA MOTORS AMERICA, INC.

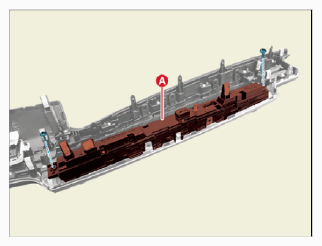

  3. Remove the AVNT keyboard (A) after removing the screws.
    G15710053Courtesy of KIA MOTORS AMERICA, INC.

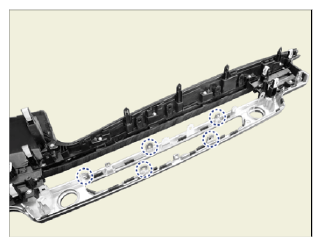

    G15710054Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

G15335385Courtesy of KIA MOTORS AMERICA, INC.
