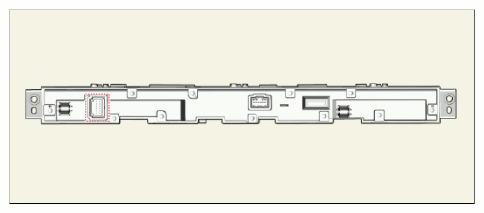

Connector and Terminal Function

Courtesy of KIA MOTORS AMERICA, INC.

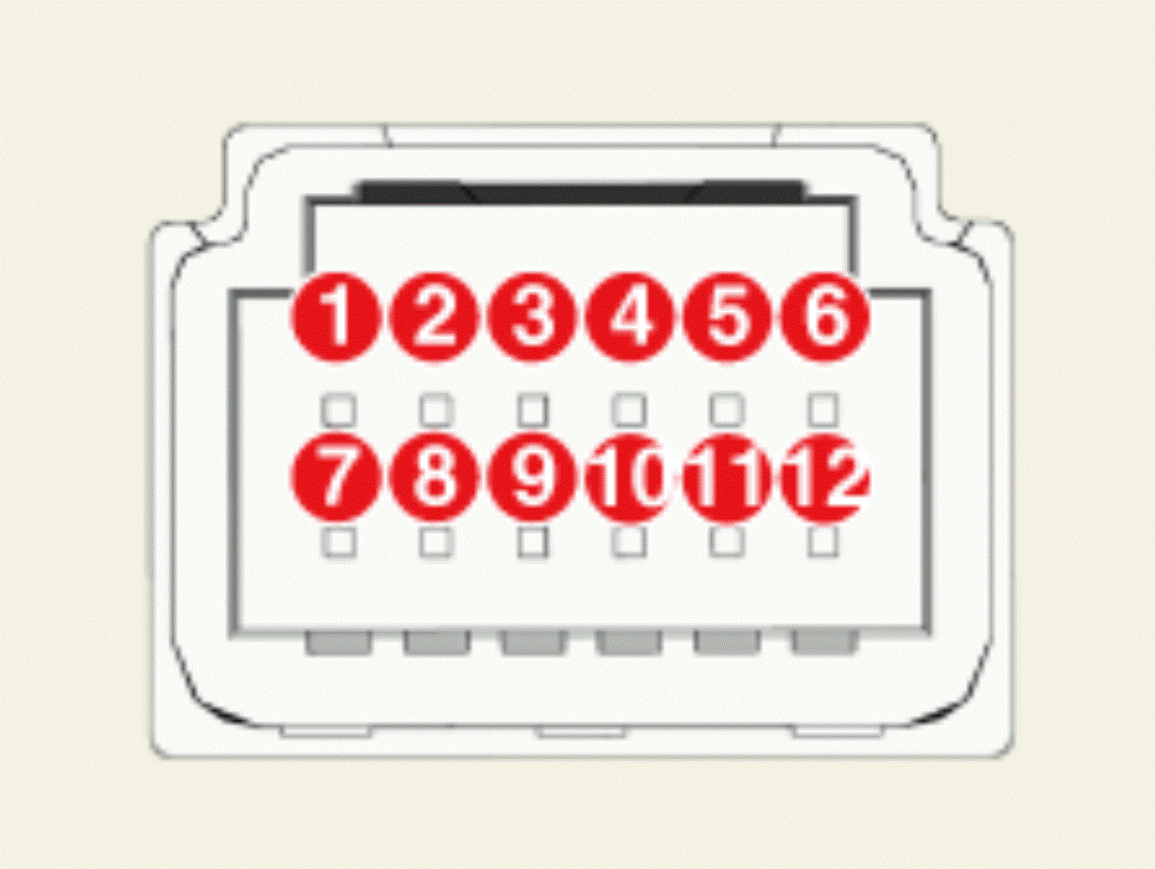

Connector A	Terminal	Function
Courtesy of KIA MOTORS AMERICA, INC.	1	-
	2	AVNT Head unit (Power)
	3	Low DC-DC converter (Audio)
	4	ICU Junction block (Fuse - Module 6)
	5	ILL. (-)
	6	ILL. (+)
	7	M-CAN (Low)
	8	M-CAN (High)
	9	-
	10	AVNT Head unit (Ground)
	11	-
	12	AVNT Head unit (Reset)
