AVNT Head Unit

Remove the Knee Airbag (KAB) module.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

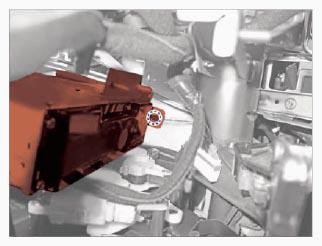

Remove the AVNT head unit (A) after removing the nuts, screw and bolt.
Tightening torque:

6.9 - 9.8 N.m (0.7 - 1 kgf.m, 5.1 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

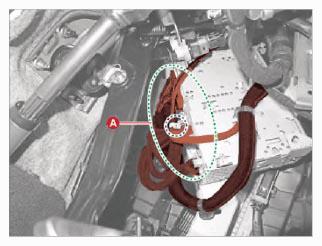

Disconnect the AVNT head unit connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

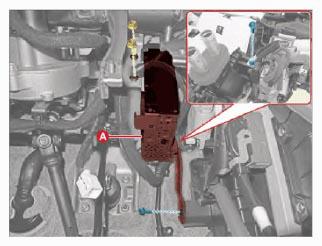

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.
