Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Auto Lighting Control System >> Auto Light Sensor >> Removal & Installation >> Removal

Removal & Installation: Removal

  1. Disconnect the negative (-) battery terminal.

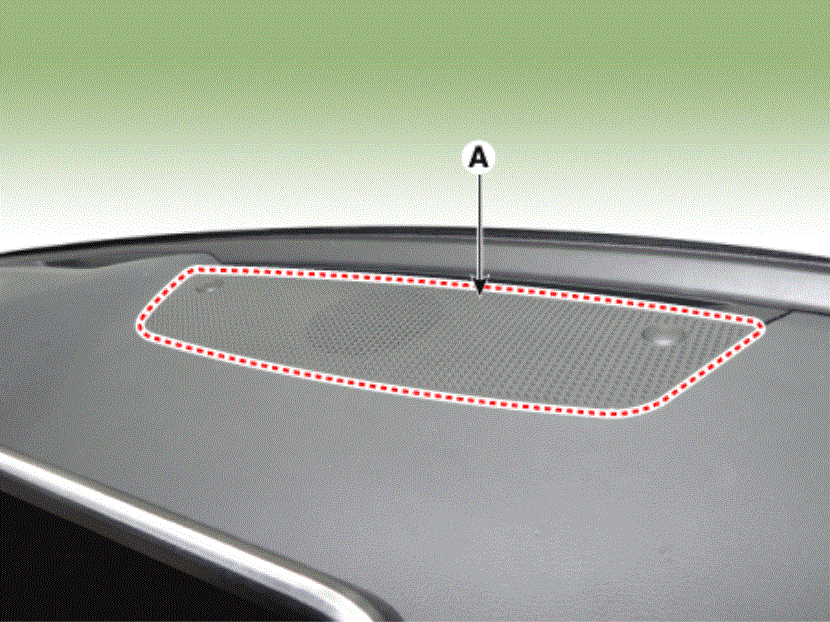

  2. Remove the front center speaker grille (A).
    G15710092Courtesy of KIA MOTORS AMERICA, INC.

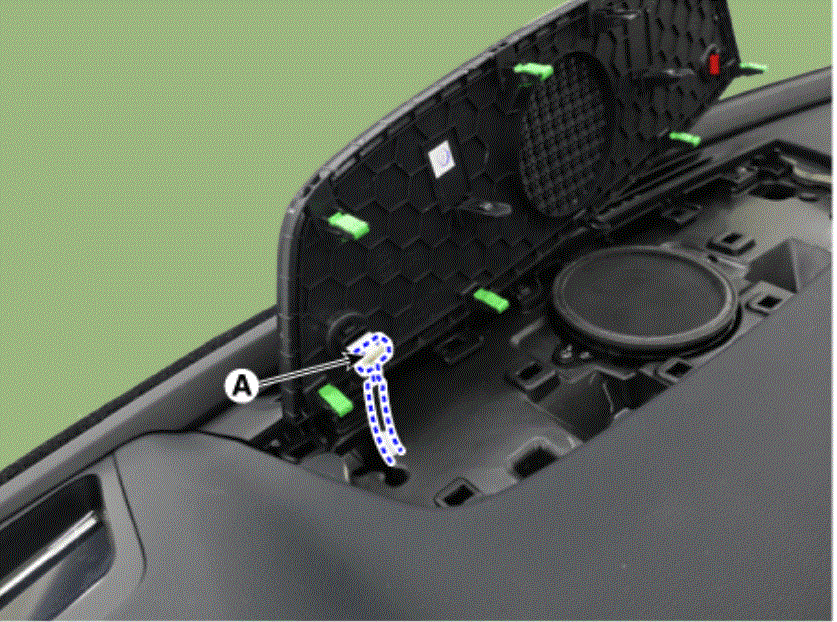

  3. Disconnect the auto light sensor connector (A).
    G15710093Courtesy of KIA MOTORS AMERICA, INC.

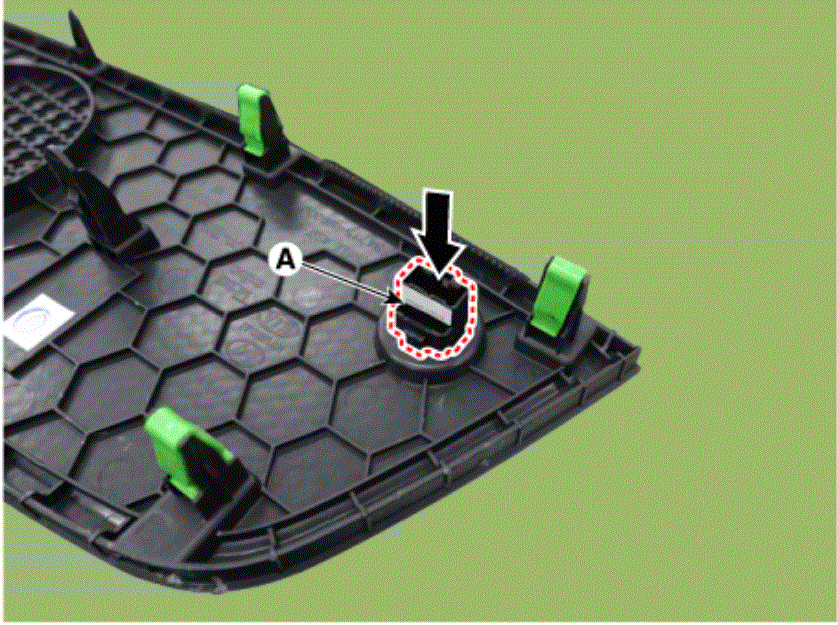

  4. Remove the auto light sensor (A) by pressing in the direction of the arrow.
G15710094Courtesy of KIA MOTORS AMERICA, INC.
