Component Inspection

Inspection Condition	Inspection Procedure	Reference

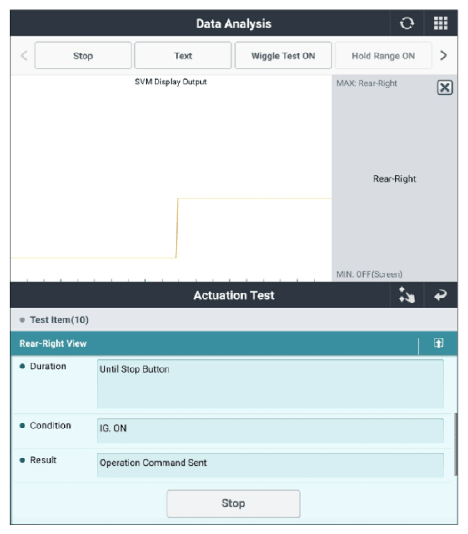

Ignition "ON". Operate the SVMS switch.	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS. Monitor the SVM display.	Fig.1 to 2

G15720548

Courtesy of KIA MOTORS AMERICA, INC.

G15720549

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace Ultra optical camera that causes the problem and then Go to "VERIFICATION OF REPAIR " procedure.
