Circuit Inspection

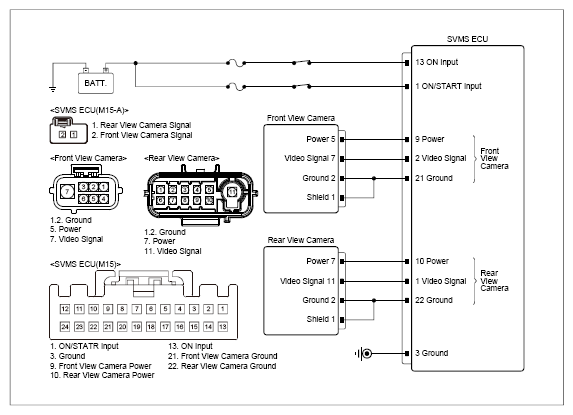

G15720539

Courtesy of KIA MOTORS AMERICA, INC.

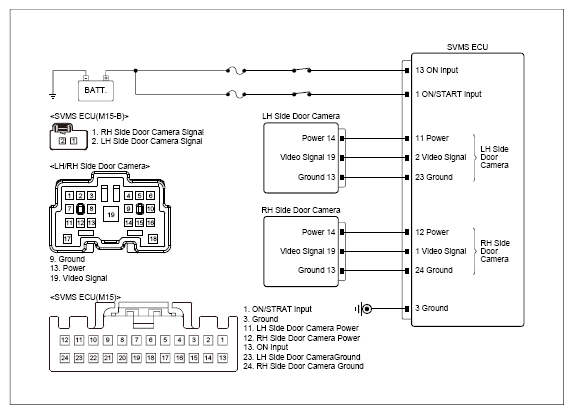

G15720540

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	SVMS LH Side Door Camera connector	14 (power)	Chassis ground	-	Approx. 6.5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	SVMS LH Side Door Camera connector	19 (Signal)	SVMS ECU connector	2 (Signal)	Approx. below 1Ω
	SVMS LH Side Door Camera connector	13 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
