Circuit Inspection

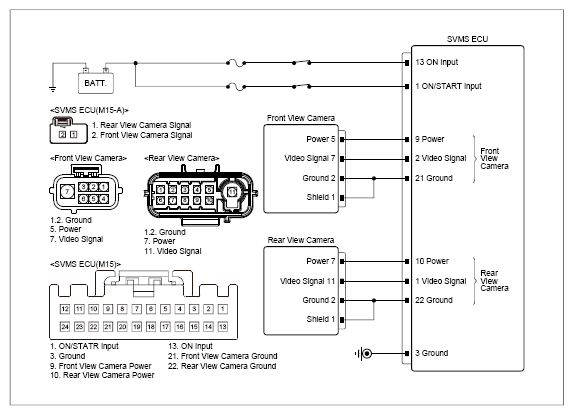

G15720525

Courtesy of KIA MOTORS AMERICA, INC.

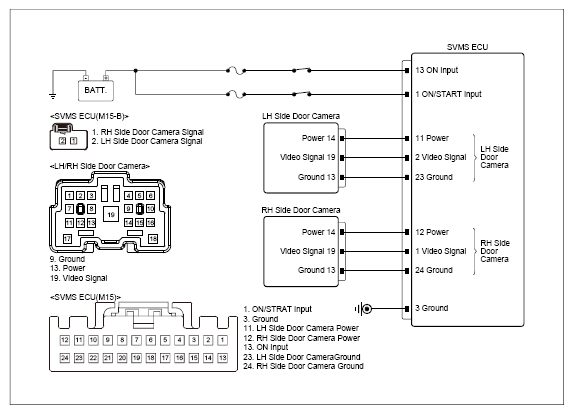

G15720526

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	SVMS front camera connector	5 (power)	Chassis ground	-	Approx. 6.5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	SVMS front camera connector	7 (Signal)	SVMS ECU harness connector	2 (Signal)	Approx. below 1Ω
	SVMS front camera connector	2 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
