Circuit Inspection

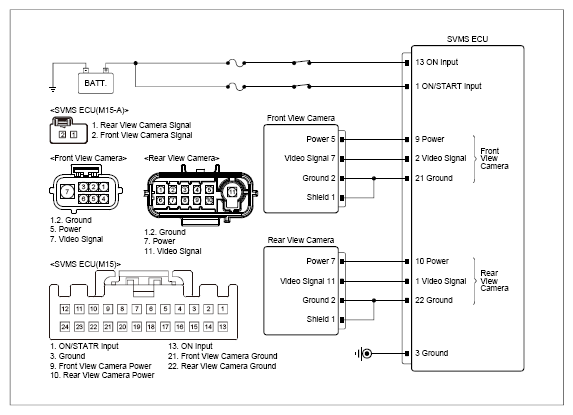

G15720512Courtesy of KIA MOTORS AMERICA, INC.

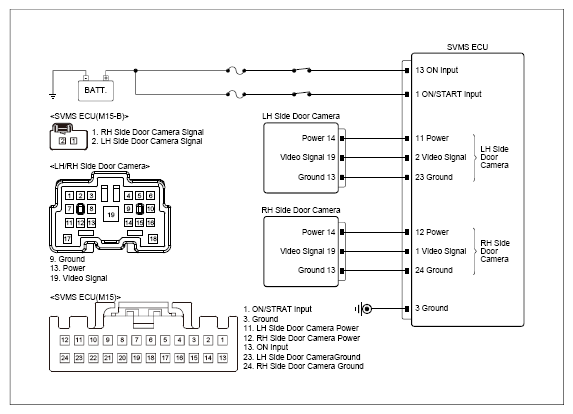

G15720513Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 SVMS front camera connector 5 (power) Chassis ground - Approx. 6.5V
SVMS rear camera connector 7 (power) Chassis ground -
SVMS LH side door camera connector 14 (power) Chassis ground -
SVMS RH side door camera connector 14 (power) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 SVMS front camera connector 2 (ground) Chassis ground - Approx. below 1Ω
SVMS rear camera connector 2 (ground) Chassis ground -
SVMS LH side door camera connector 13 (ground) Chassis ground -
SVMS RH side door camera connector 13 (ground) Chassis ground -

Good

No Good
