Inspection Procedure

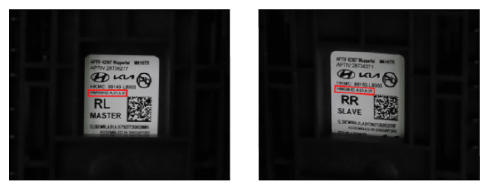

1. Check for software version on the C_RADAR_RL and C_RADAR_RR label. (Fig.1)

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Carefully re-do this troubleshooting procedure steps.
• If no problems were found with the circuits or connectors, replace the C_RADAR_RL or C_RADAR_RR and Go to "VERIFICATION OF REPAIR " procedure.
• In case of C_RADAR_RL or C_RADAR_RR is replaced, refer to C110117, "BCW (BSD) RADAR CALIBRATION " must be performed.

No Good

• Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
