Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference

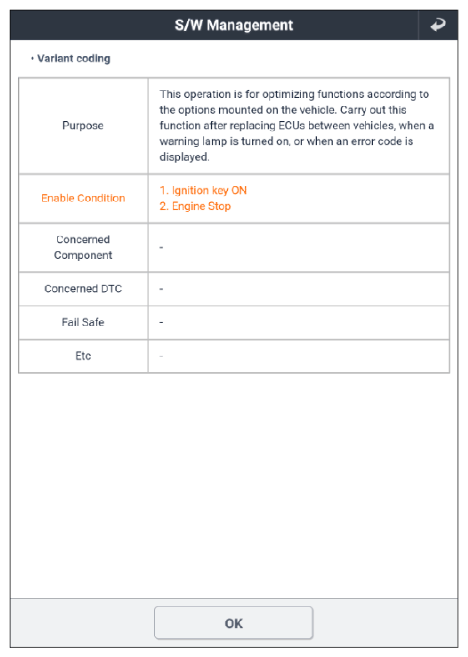

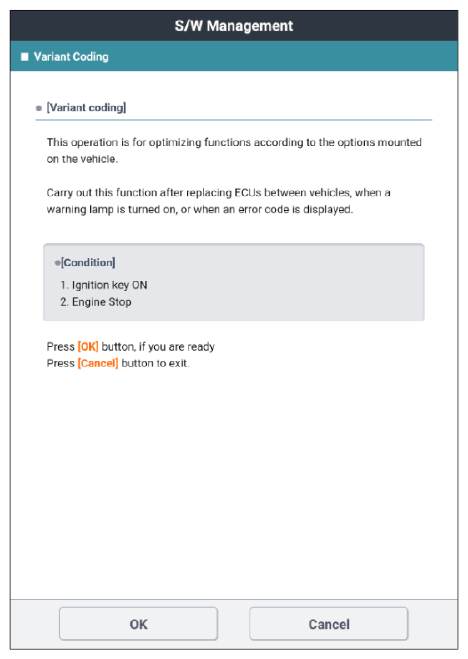

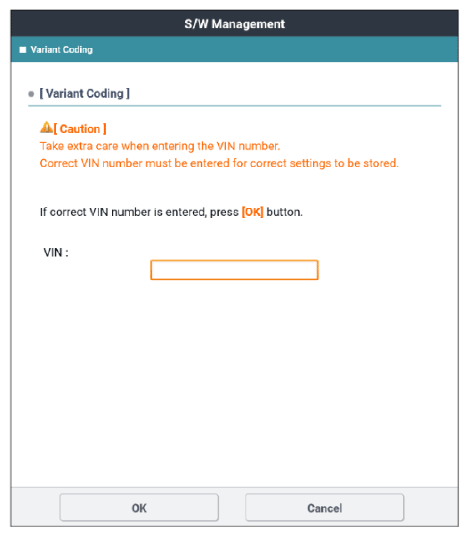

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 5

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be caused by not performing variant coding after FR_CMR replacement. Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the FR_CMR and Go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing FR_CMR, perform following "System Inspection" procedures.
