Vehicle S/W Management

CAUTION: * Perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle" on "Vehicle S/W Management", once FR_RDR is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle", unless you have proper equipment to perform inline procedure.

Inspection Condition	Inspection Procedure	Reference

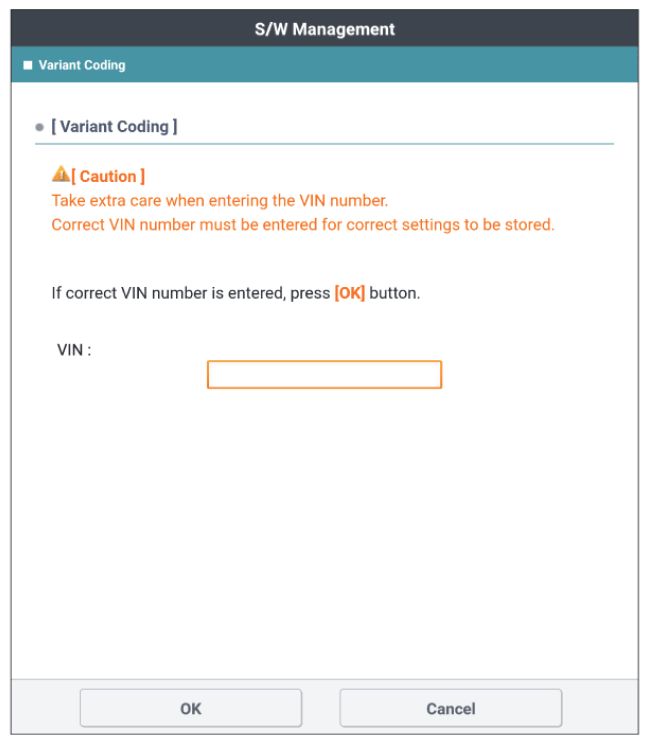

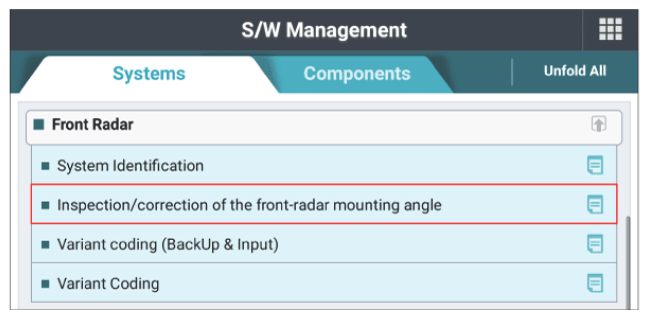

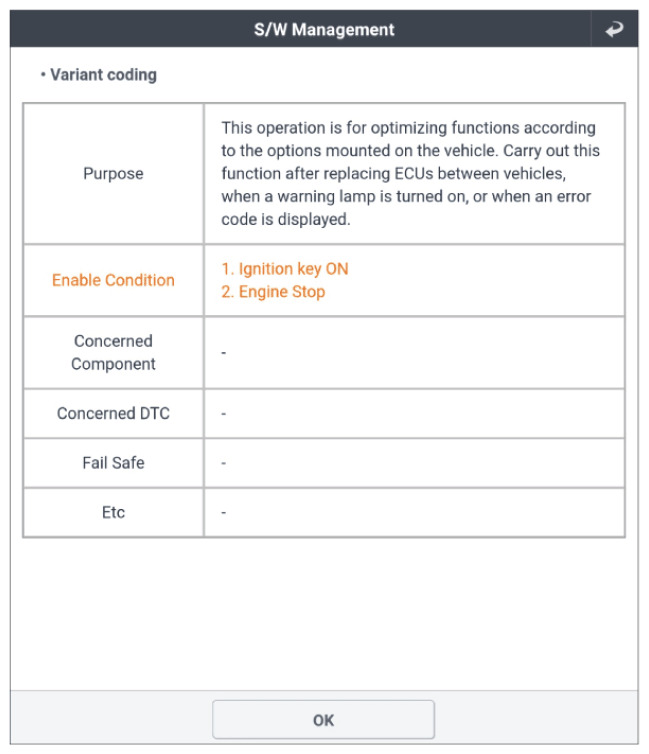

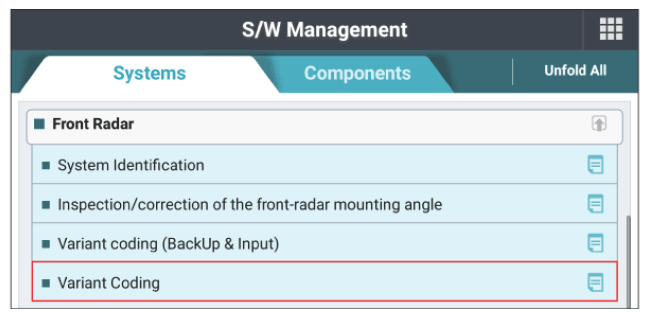

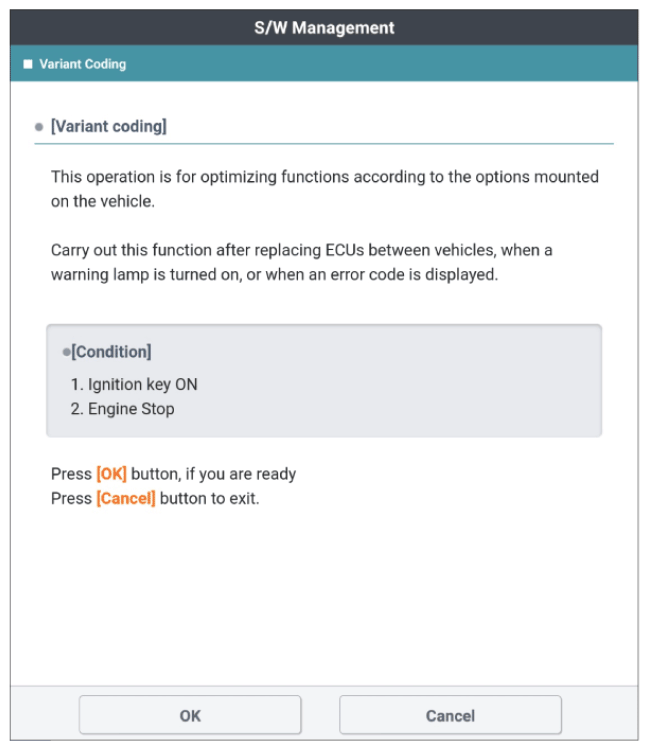

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS.	Fig.1 to 5

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	Inspection Procedure	Reference

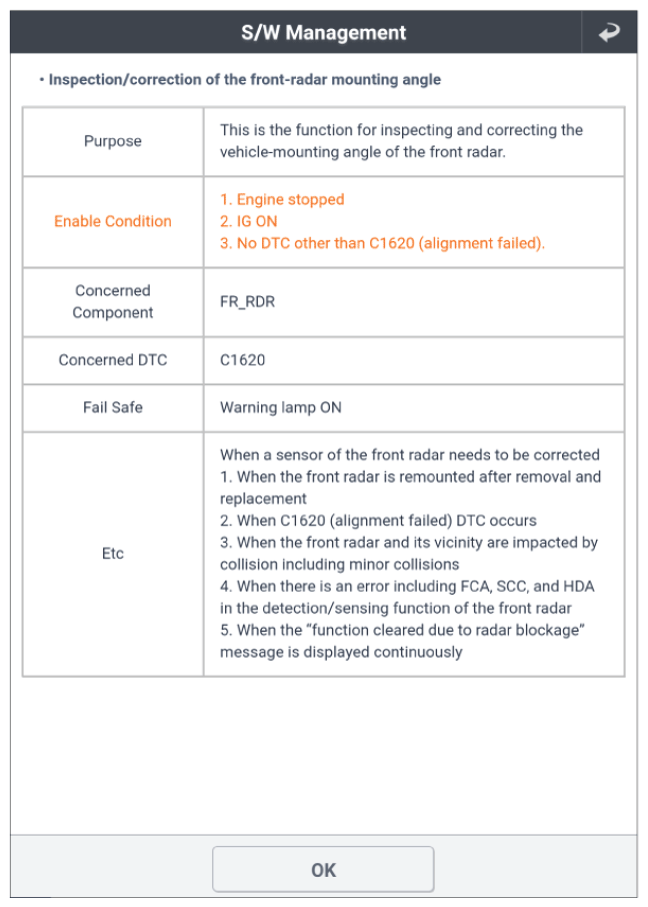

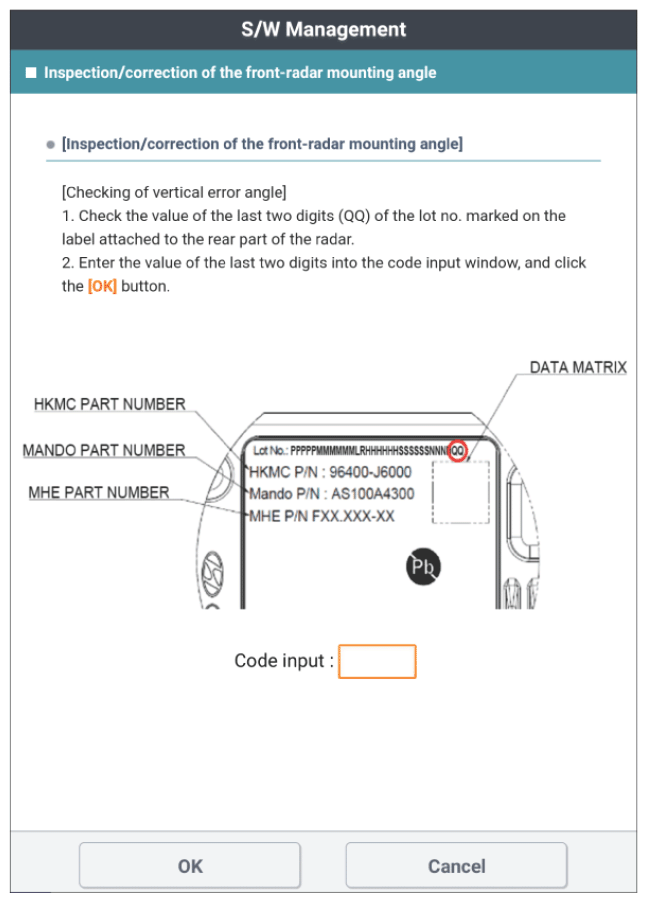

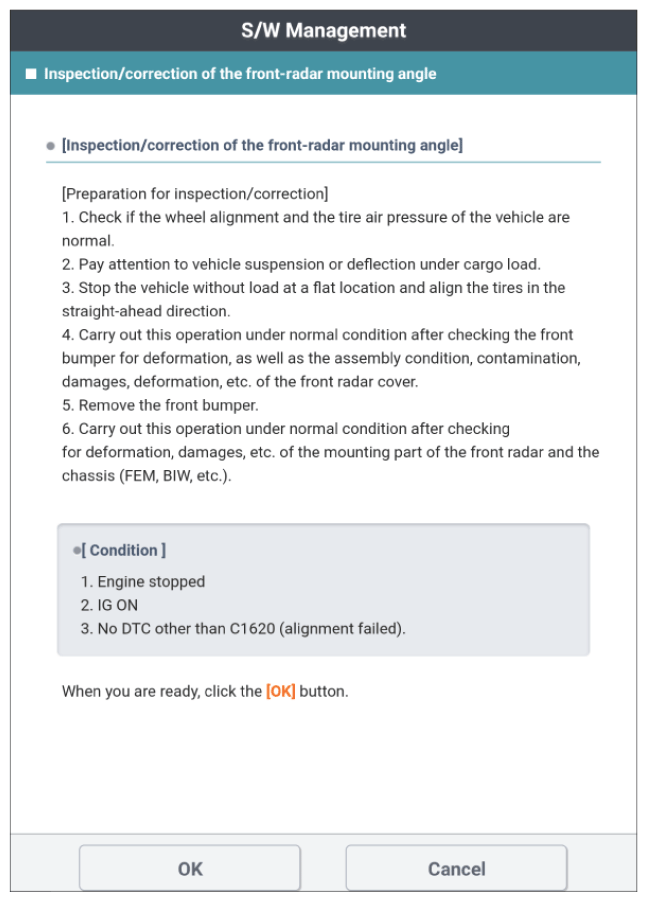

Ignition "ON". No DTC other than C162078 code.	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS. Select "Inspection/correction of the front-radar mounting angle".	Fig.1 to 4

* If there is no correction target, do not select the stop mode.
