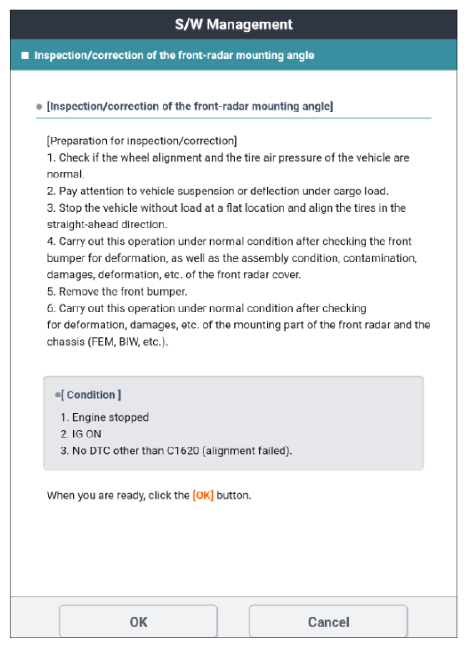

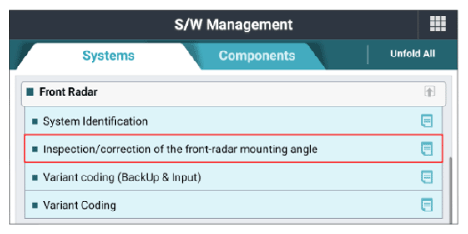

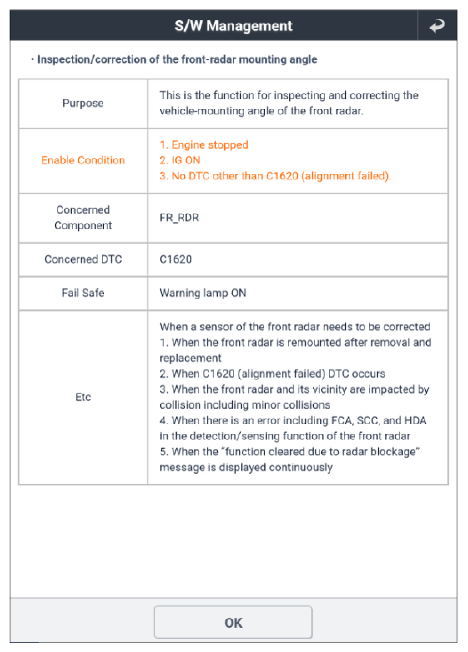

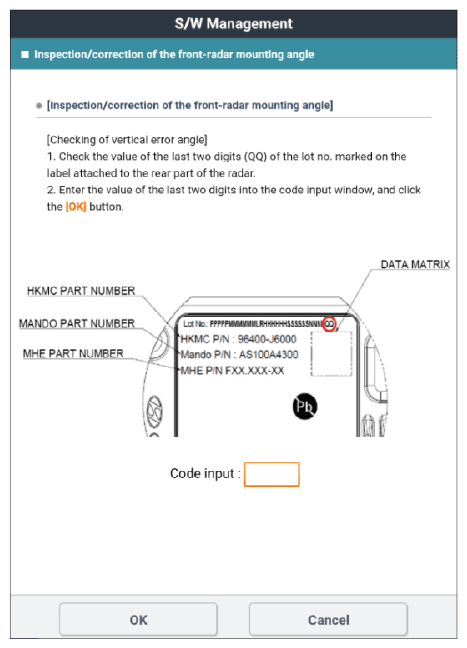

Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
• Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

• Carefully re-do this troubleshooting guide steps.
• If problem still occurs, replace the FR_RDR and then go to "VERIFICATION OF REPAIR " procedure.
