Vehicle S/W Management
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

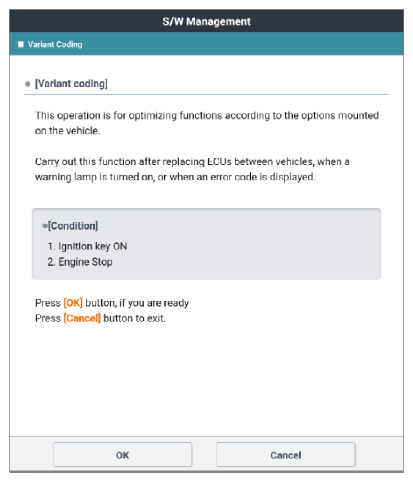

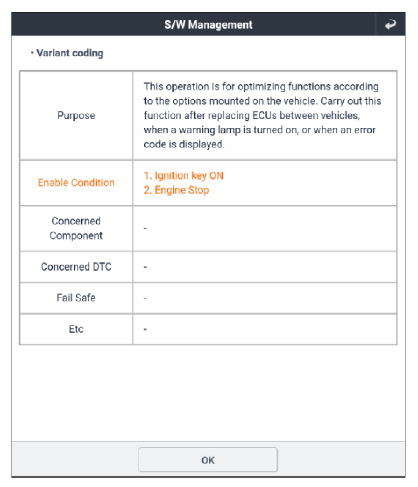

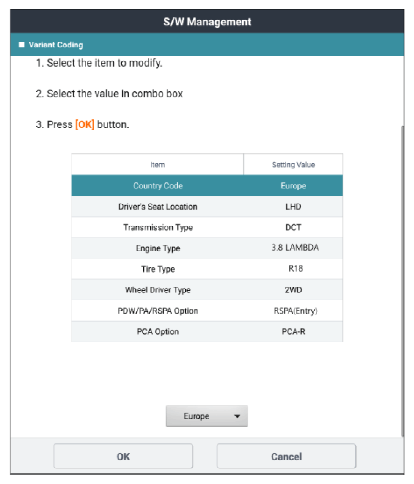

Fig.1 to 4 |
Good
- Fault might be caused by not performing variant coding after ADAS PRK ECU replacement. Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting procedure steps.
- If no problems were found with the circuits or connectors, replace the ADAS PRK ECU and go to "VERIFICATION OF REPAIR " procedure.
In case of replacing ADAS PRK ECU, perform following "System Inspection" procedures
