Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Select correct "Vehicle Model", "Year", and "Engine Type" with KDS. Select CAN related system. Select "Fault Code Searching".	Fig.1 to 3

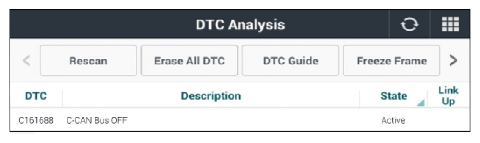

G15713425

Courtesy of KIA MOTORS AMERICA, INC.

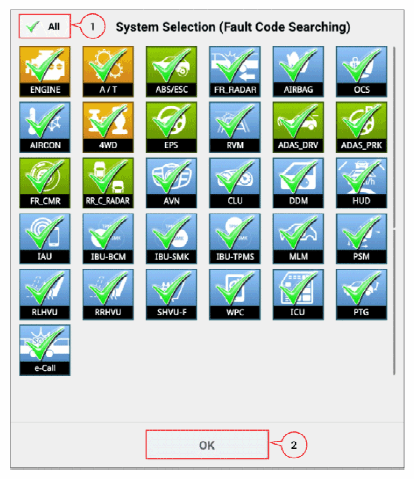

G15713426

Courtesy of KIA MOTORS AMERICA, INC.

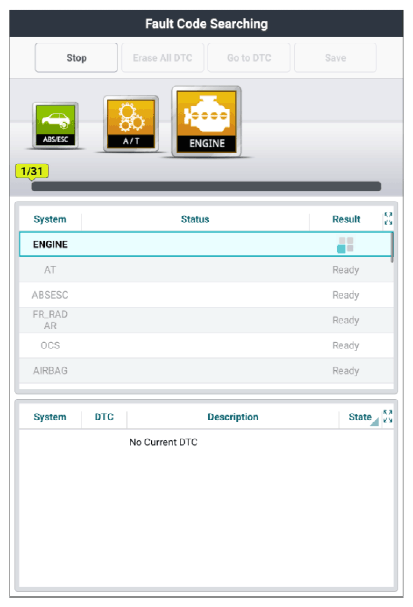

G15713427

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Repair any CAN related DTCs first and then carefully re-do this troubleshooting procedure steps.
If problem still occurs, go to "WIRING INSPECTION " procedure.

History/Pending Fault

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
