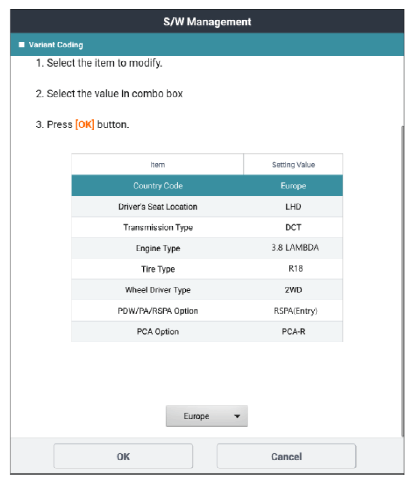

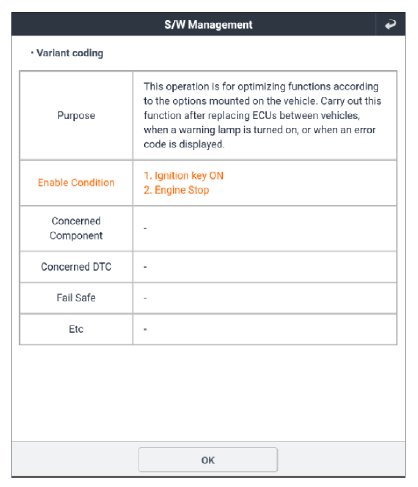

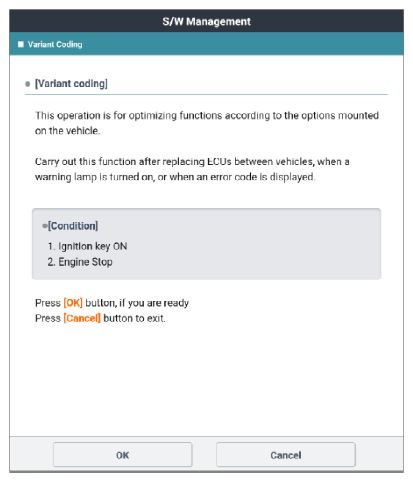

Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Carefully re-do this troubleshooting procedure steps.
• If no problems were found with the circuits or connectors, replace the ADAS_PRK and Go to "VERIFICATION OF REPAIR " procedure.

  After ADAS_PRK replacement, refer to the C110417 data to perform VEHICLE S/W MANAGEMENT .

No Good

• Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
