Circuit Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Power inspection (PDW front LH ↔ Chassis ground) |
|
PDW front LH connector | 6 (power) | Chassis ground | - | Approx. 0.5V |
| Open in circuit inspection (PDW front LH ↔ ADAS_PRK) |
|
PDW front LH connector | 6 (power) | ADAS_PRK connector | 15 (PDW-F power) | Approx. below 1Ω |
| PDW front LH connector | 5 (LIN) | ADAS_PRK connector | 13 (PDW-F LIN) | Approx. below 1Ω | ||
| Open in circuit inspection (PDW front LH ↔ Chassis ground) |
|
PDW front LH connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω |
| Short in circuit inspection (PDW front LH ↔ Chassis ground) |
|
PDW front LH connector | 5 (LIN) | Chassis ground | - | ∞ (infinity)Ω |
| Oscilloscope (PDW front LH) |
|

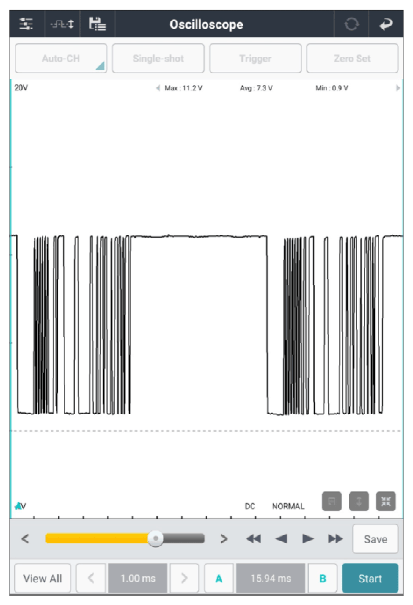

PDW front LH connector | 5 (LIN) | Chassis ground | - | Fig.1 |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR ".
