Circuit Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Power inspection (PDW front ↔ Chassis ground) |
|
PDW front connector | 6 (power) | Chassis ground | - | Approx. 0.5V |
| Power inspection (PDW rear ↔ Chassis ground) |
|
PDW rear connector | 6 (power) | Chassis ground | - | Approx. 0.5V |
| Open in circuit inspection (PDW front ↔ ADAS_PRK) |
|
PDW front connector | 5 (LIN) | ADAS_PRK connector | 13 (LIN PDW-F) | Approx. below 1Ω |
| PDW front connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | ||
| Open in circuit inspection (PDW rear ↔ ADAS_PRK) |
|
PDW rear connector | 5 (LIN) | ADAS_PRK connector | 29 (LIN PDW-R) | Approx. below 1Ω |
| PDW rear connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | ||
| Short in circuit inspection (PDW front ↔ Chassis ground) |
|
PDW front connector | 5 (LIN) | Chassis ground | - | ∞ (infinity)Ω |
| Short in circuit inspection (PDW rear ↔ Chassis ground) |
|
PDW rear connector | 5 (LIN) | Chassis ground | - | ∞ (infinity)Ω |

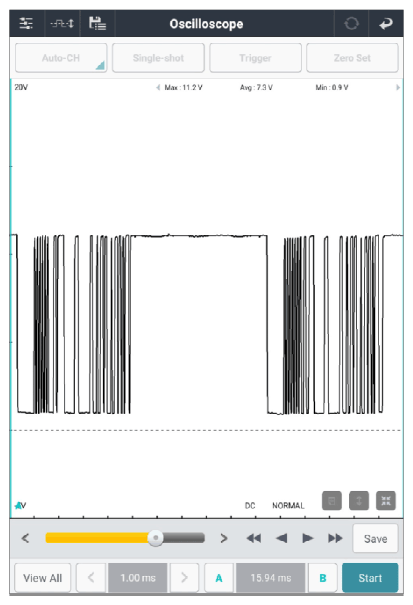

| Oscilloscope (ADAS_PRK) |
|
ADAS_PRK connector | 13 (LIN PDW-F) | Chassis ground | - | Fig.1 |
|
ADAS_PRK connector | 29 (LIN PDW-R) | Chassis ground | - | Fig.1 | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
