Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 3 (SVM tolerance compensation) Fig.4 to 13 (SVM calibration)
G15713241Courtesy of KIA MOTORS AMERICA, INC.

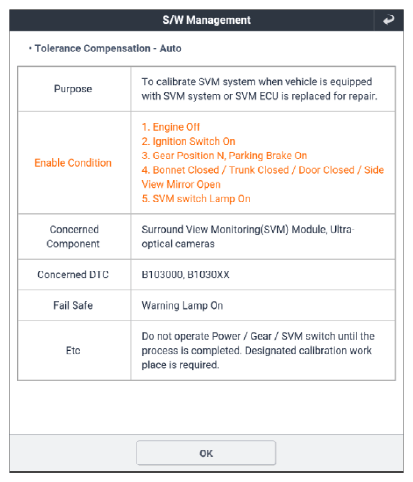

G15713242Courtesy of KIA MOTORS AMERICA, INC.

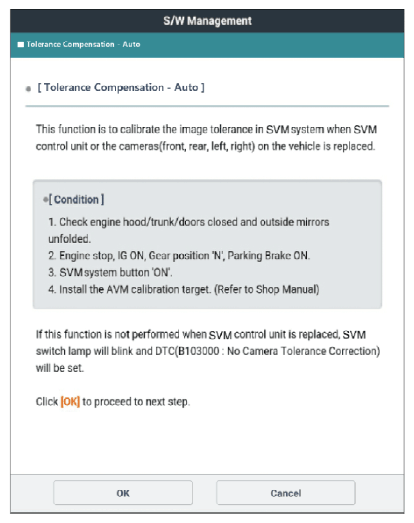

G15713243Courtesy of KIA MOTORS AMERICA, INC.
G15713244Courtesy of KIA MOTORS AMERICA, INC.

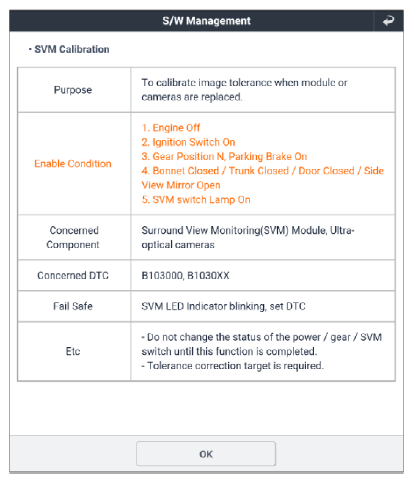

G15713245Courtesy of KIA MOTORS AMERICA, INC.

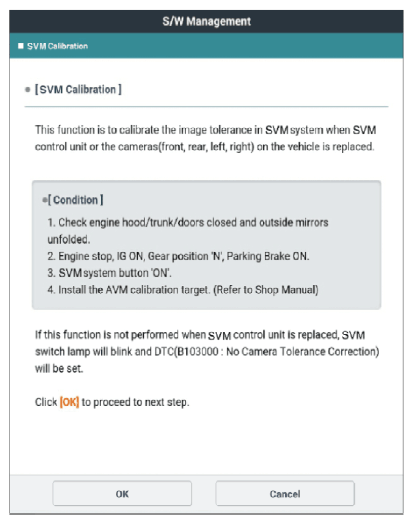

G15713246Courtesy of KIA MOTORS AMERICA, INC.
