Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 3 (SVM tolerance compensation) Fig.4 to 13 (SVM calibration)
G15713175Courtesy of KIA MOTORS AMERICA, INC.

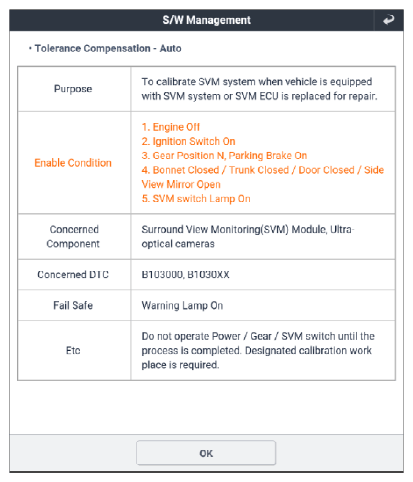

G15713176Courtesy of KIA MOTORS AMERICA, INC.

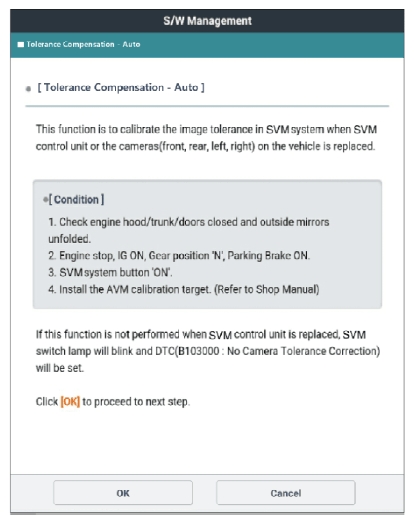

G15713177Courtesy of KIA MOTORS AMERICA, INC.
G15713178Courtesy of KIA MOTORS AMERICA, INC.

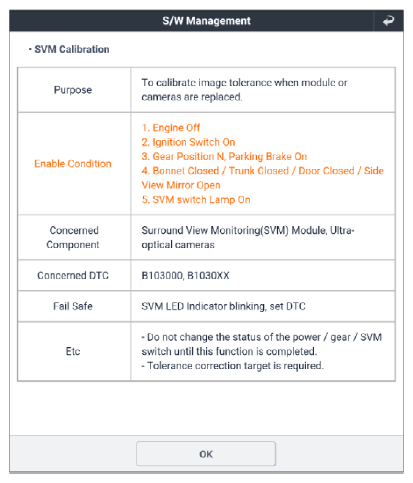

G15713179Courtesy of KIA MOTORS AMERICA, INC.

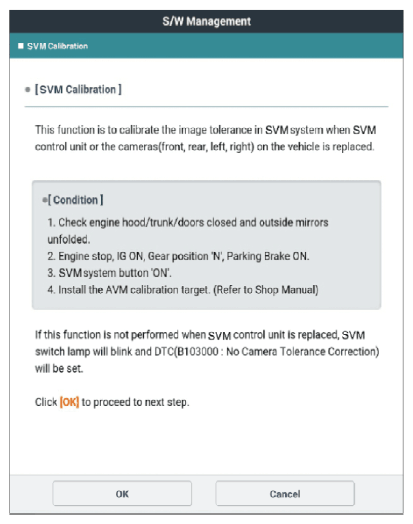

G15713180Courtesy of KIA MOTORS AMERICA, INC.
