Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 3 (SVM tolerance compensation) Fig.4 to 13 (SVM calibration)
G15713156Courtesy of KIA MOTORS AMERICA, INC.

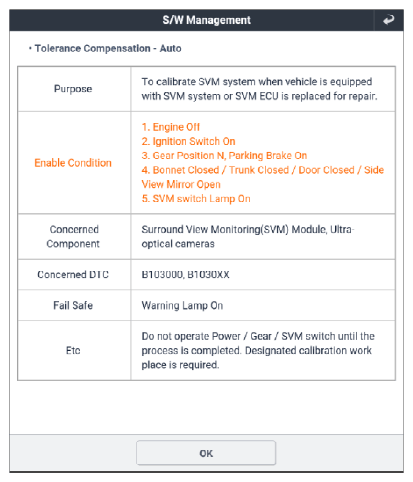

G15713157Courtesy of KIA MOTORS AMERICA, INC.

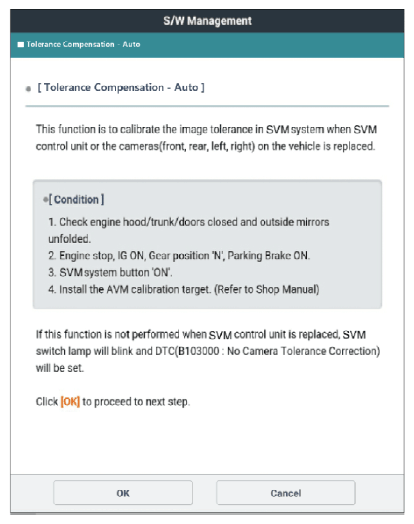

G15713158Courtesy of KIA MOTORS AMERICA, INC.
G15713159Courtesy of KIA MOTORS AMERICA, INC.

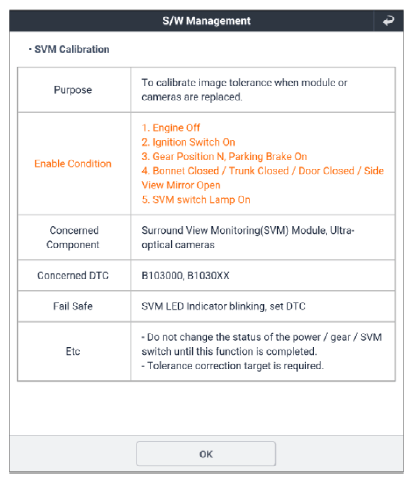

G15713160Courtesy of KIA MOTORS AMERICA, INC.

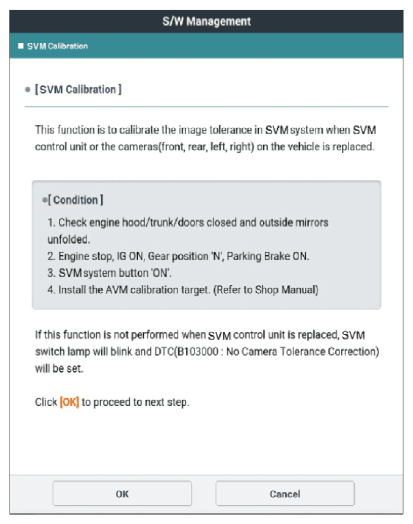

G15713161Courtesy of KIA MOTORS AMERICA, INC.
