Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 3 (SVM tolerance compensation) Fig.4 to 13 (SVM calibration)
G15713137Courtesy of KIA MOTORS AMERICA, INC.

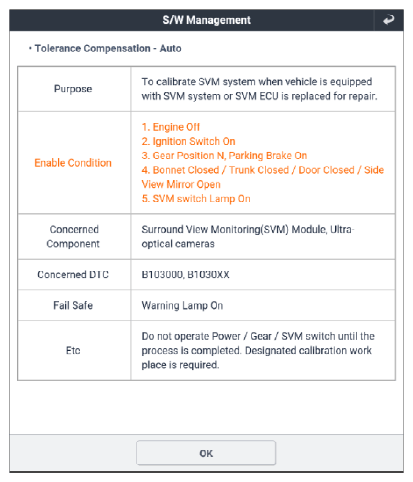

G15713138Courtesy of KIA MOTORS AMERICA, INC.

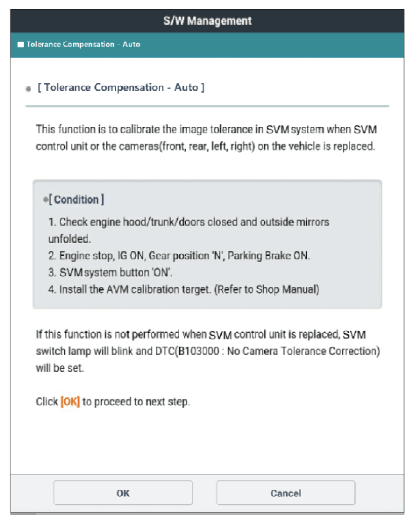

G15713139Courtesy of KIA MOTORS AMERICA, INC.
G15713140Courtesy of KIA MOTORS AMERICA, INC.

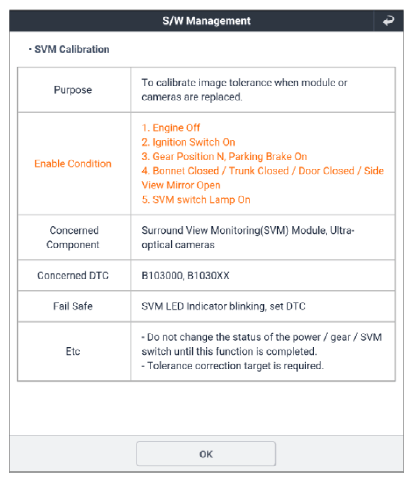

G15713141Courtesy of KIA MOTORS AMERICA, INC.

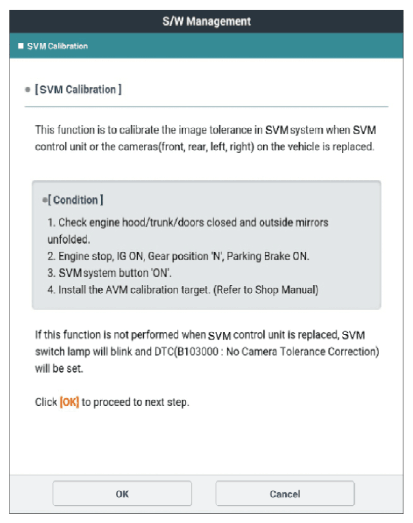

G15713142Courtesy of KIA MOTORS AMERICA, INC.
