Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 3 (SVM tolerance compensation) Fig.4 to 13 (SVM calibration)
G15713118Courtesy of KIA MOTORS AMERICA, INC.

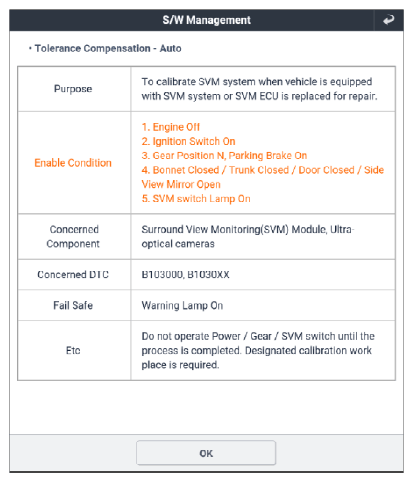

G15713119Courtesy of KIA MOTORS AMERICA, INC.

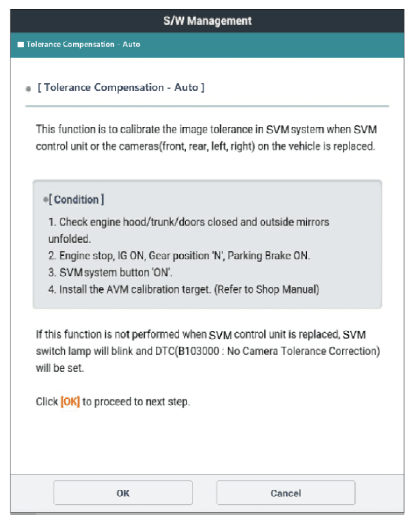

G15713120Courtesy of KIA MOTORS AMERICA, INC.
G15713121Courtesy of KIA MOTORS AMERICA, INC.

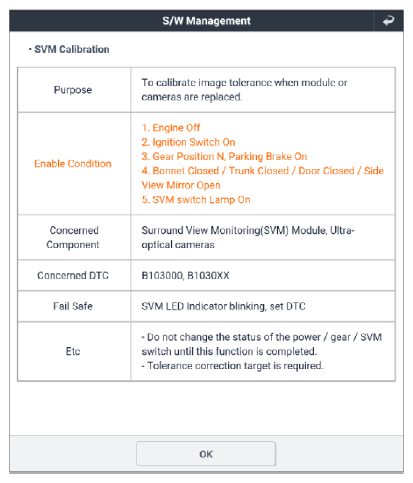

G15713122Courtesy of KIA MOTORS AMERICA, INC.

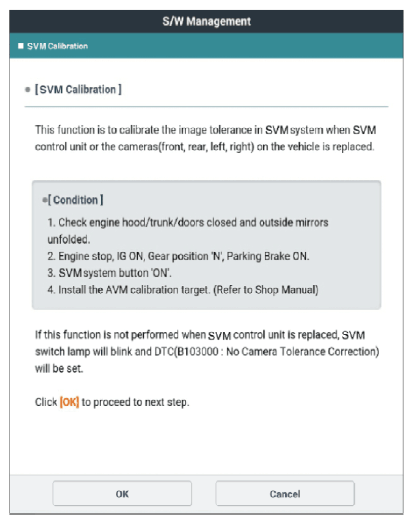

G15713123Courtesy of KIA MOTORS AMERICA, INC.
