SVMS calibration procedure

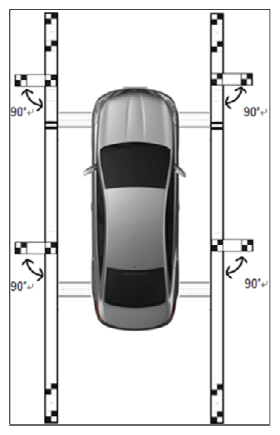

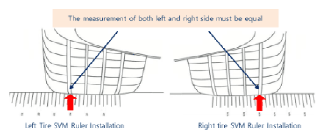

Install the SVM Ruler, SVM Reference Line and SVM Target Point Plate within specification to around the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- If a customer has replaced tires to different size, SVMS calibration may not be correct.

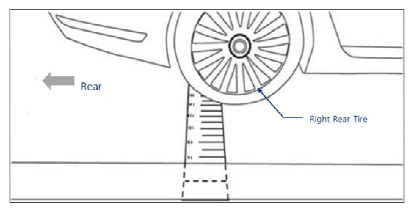

- The dimension of the front and rear tires may be different.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

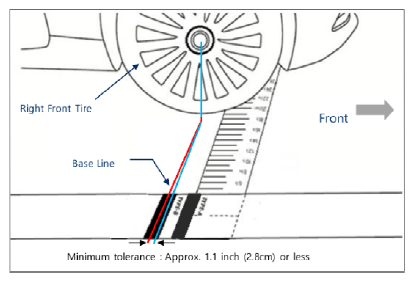

- Align the center line of front tires with center line of Type-B arrows.
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- SVM Target, Rulers, and Reference Lines store:
1. Do not store with MCS rulers, MCS reference lines and the target point plates folded.
2. Clean any debris found on the MCS rulers, MCS reference lines or the target point before storing them in their container.
Good
- Fault might be caused by not performing SVMS calibration after ADAS_PRK replacement. Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting procedure steps.
- If problems still occurs, replace ADAS PRK and then Go to "VERIFICATION OF REPAIR " procedure.
  * If module is replaced, refer to the C110417 data to perform the "VEHICLE S/W MANAGEMENT" procedure.
