Vehicle S/W Management: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 3 (SVM tolerance compensation) Fig.4 to 13 (SVM calibration)
G15713099Courtesy of KIA MOTORS AMERICA, INC.

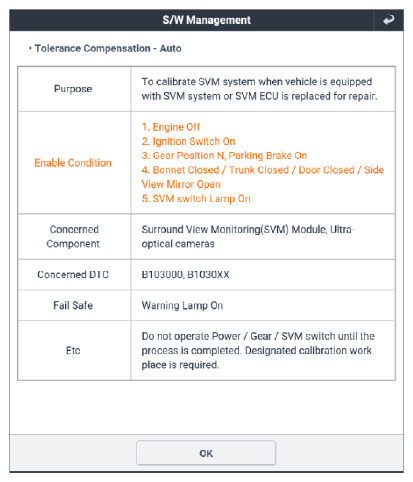

G15713100Courtesy of KIA MOTORS AMERICA, INC.

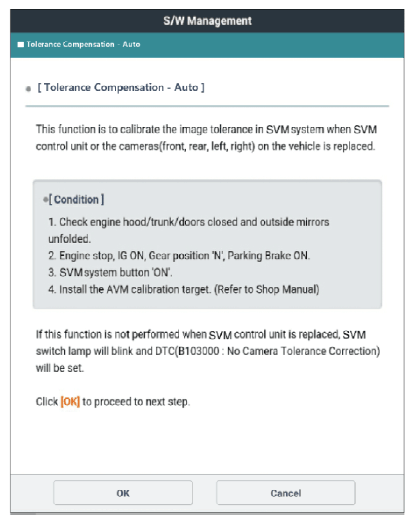

G15713101Courtesy of KIA MOTORS AMERICA, INC.
G15713102Courtesy of KIA MOTORS AMERICA, INC.

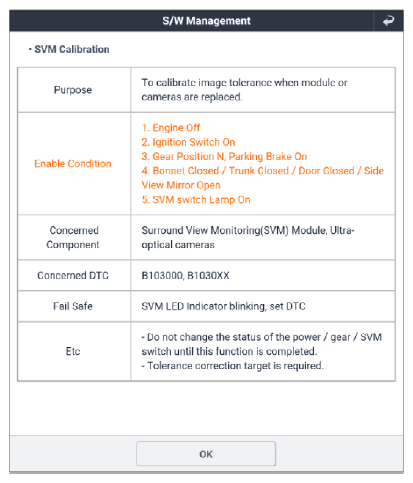

G15713103Courtesy of KIA MOTORS AMERICA, INC.

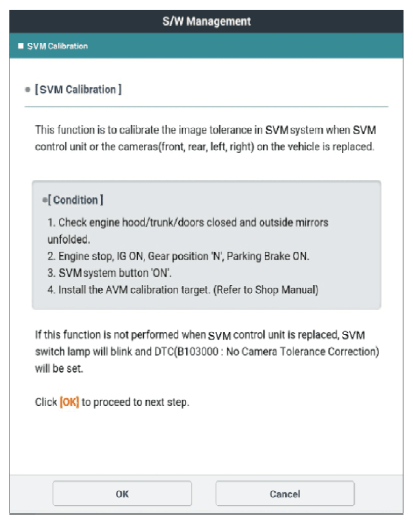

G15713104Courtesy of KIA MOTORS AMERICA, INC.
