Check For Poor Picture Image Quality Of Wide Angle Camera

Symptom	Cause
	Dirty lens	Damaged lens	Damaged lens	Airtightness failure

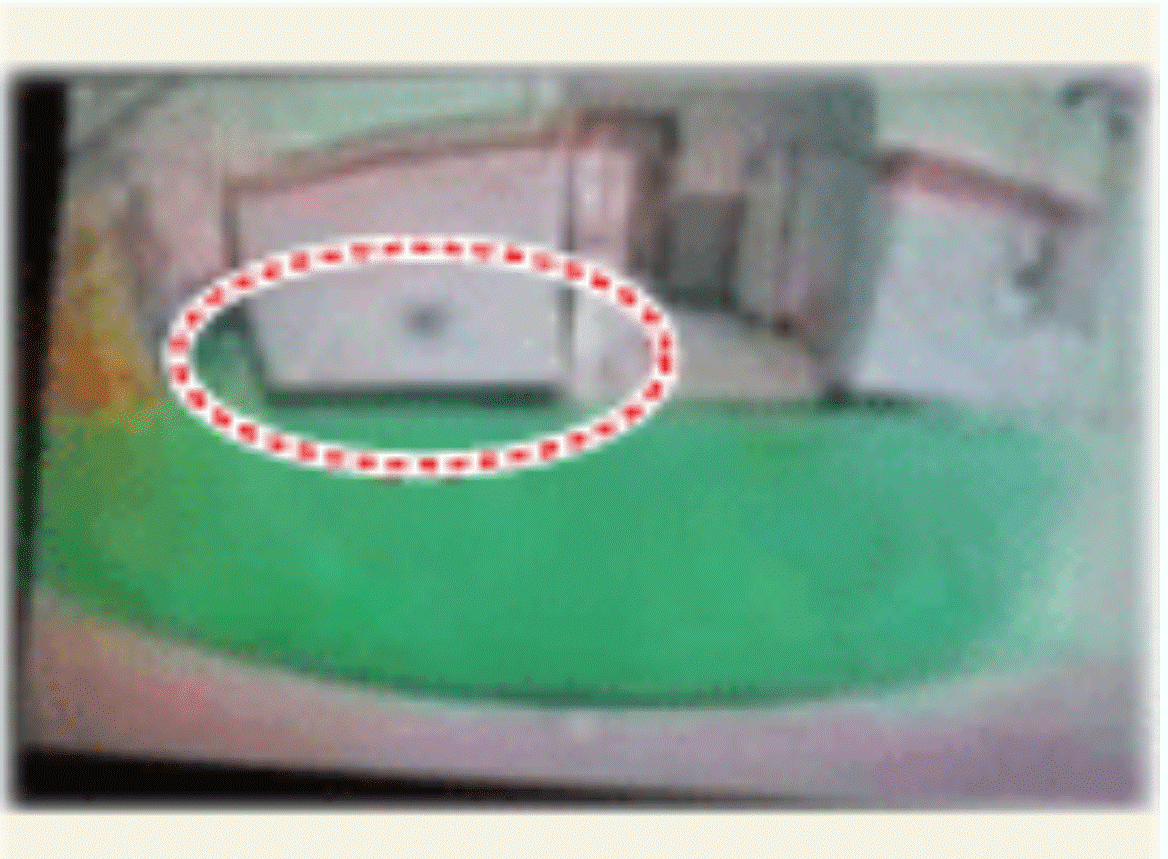

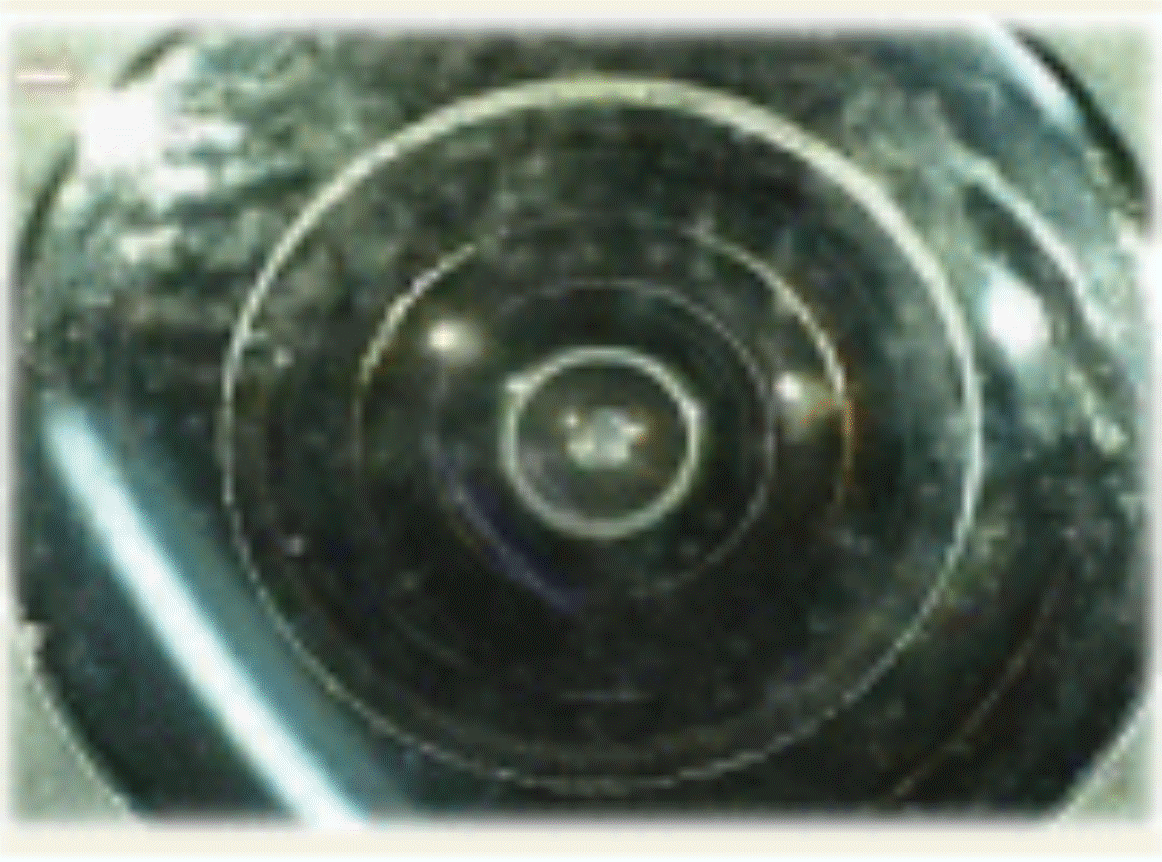

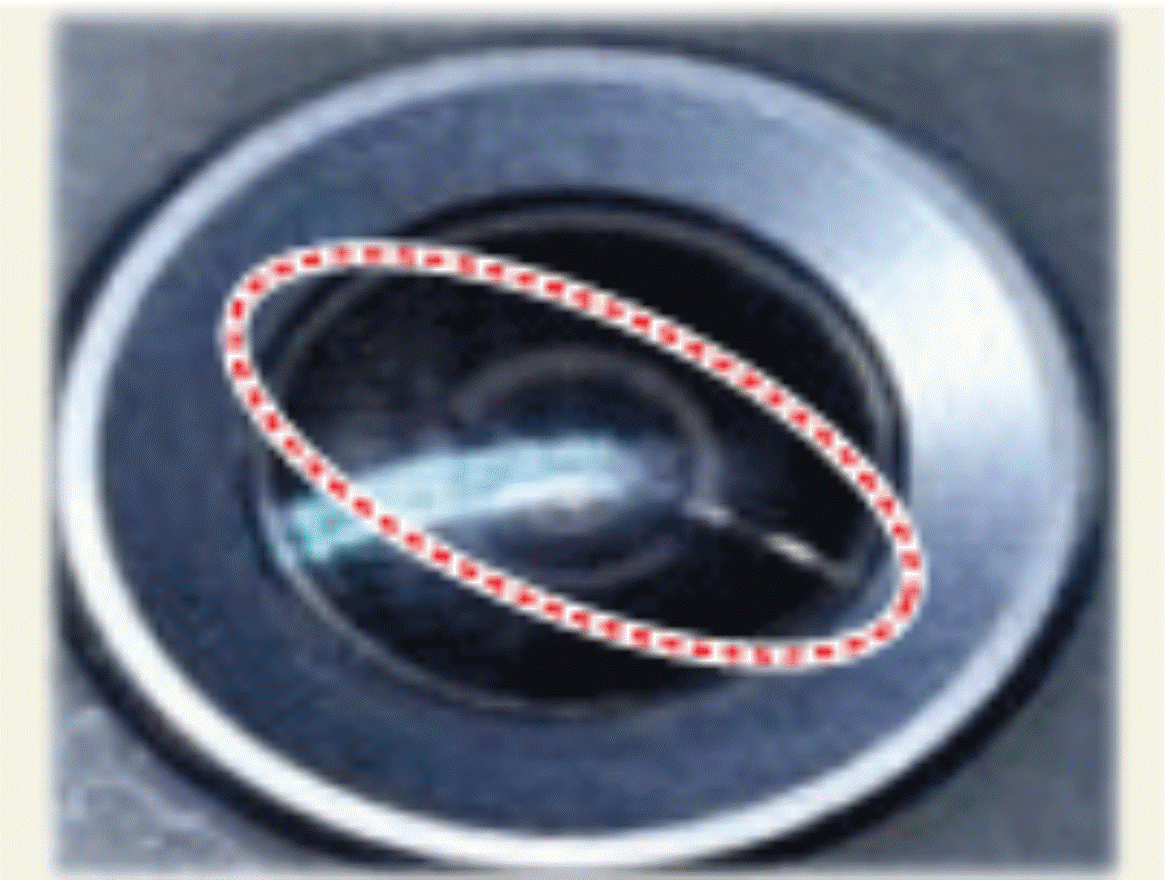

Courtesy of KIA MOTORS AMERICA, INC. Blurry and display quality trouble	Courtesy of KIA MOTORS AMERICA, INC. Exterior stain	Courtesy of KIA MOTORS AMERICA, INC. Lens coating peeled	Courtesy of KIA MOTORS AMERICA, INC. Lens crack	Courtesy of KIA MOTORS AMERICA, INC. Inflow of water in lens

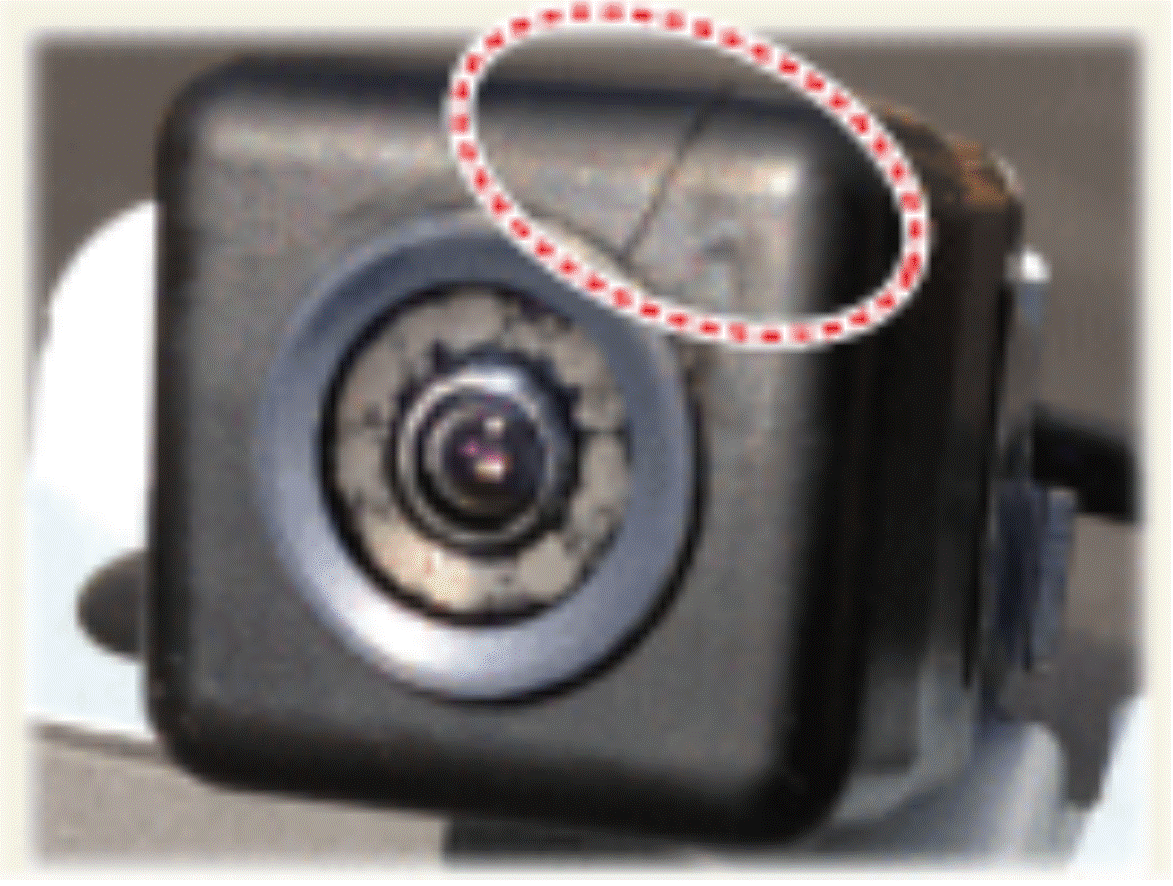

Courtesy of KIA MOTORS AMERICA, INC. Any object or line on monitor				Courtesy of KIA MOTORS AMERICA, INC. Crack and inflow of water
Countermeasure	Clean the exterior of lens with water or clean cloth (fabric)	Clean lens with Kia approved cleaners, if unable to clean, replace camera.	Replace camera	Repair or replace the wiring

NOTE:

• When installing a non genuine wide angle camera, poor image quality or malfunction may occur, so be sure to check whether the genuine product is installed.
• Warranty repair is not available for replacement of wide angle camera in case of malfunction due to negligence in use (cleaning with detergent, impact from foreign substances) or non genuine installation.
• When cleaning the exterior of the wide angle camera lens, be sure to clean it with water or a clean cloth.
• After checking the surface condition of the wide angle camera lens and removing foreign substances, check whether the same defect occurs.
• When washing the car with a strong acid cleaner, the coating of the wide-angle camera lens may peel off.
• Cracks in the wide angle camera lens can occur due to impact from foreign objects such as stones while driving.
