Removal & Installation: Removal
NOTE:
In the case of poor image quality or poor focus, first check the surface condition of the wide-angle camera lens and contamination by foreign substances.
- Remove the tailgate garnish.
(Refer to Body - TAILGATE GARNISH )

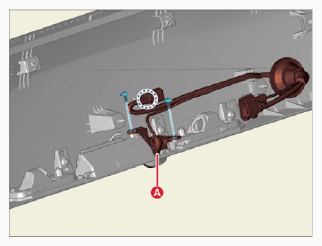

- Disconnect the wide angle-rear view camera connector (A).

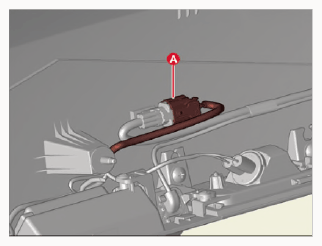

- Remove the wide angle-rear view camera (A) after removing the screws.
