Connector And Terminal Function

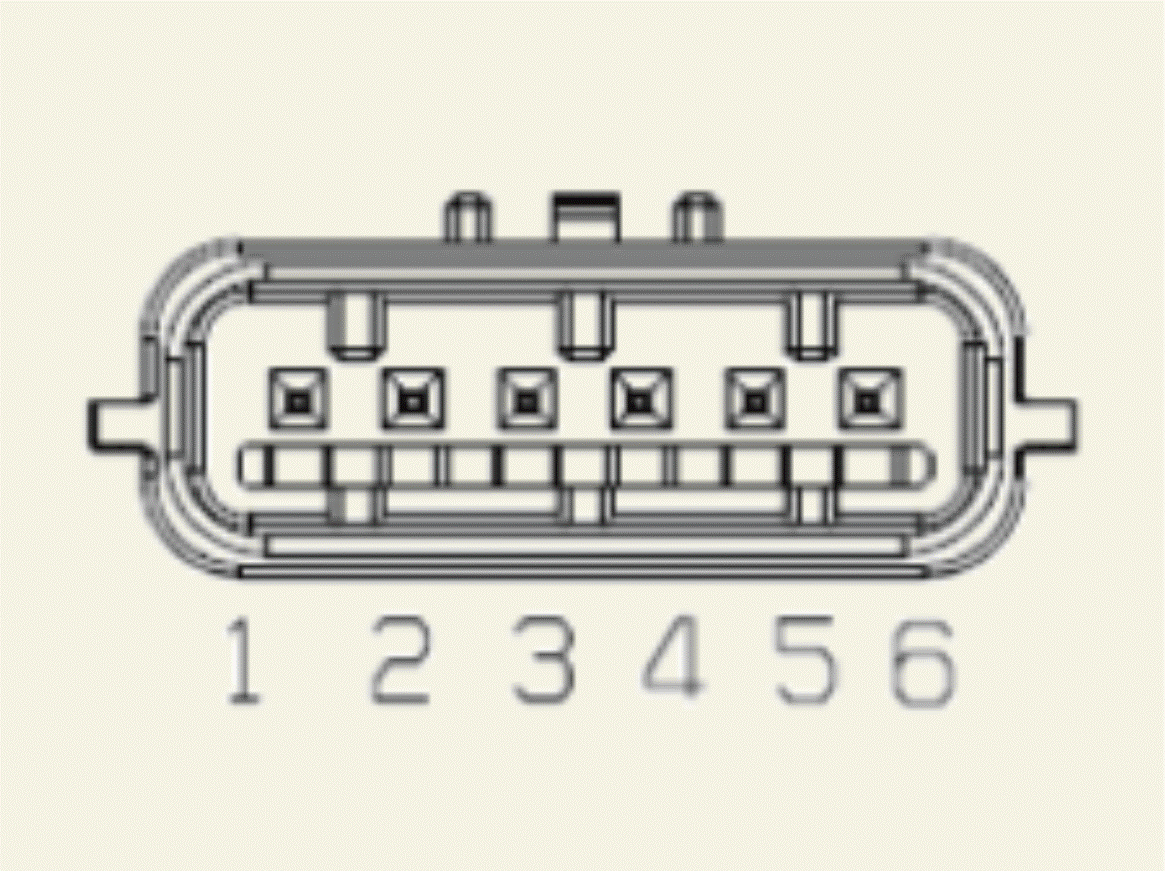

Connector Terminal Function
G15710787Courtesy of KIA MOTORS AMERICA, INC.
 1 LIN 1
2 LIN 2
3 LIN 3
4 Ground
5 PDW LIN signal
6 PDW power
