Removal & Installation: Removal

  1. Remove the console upper cover.

    (Refer to Body - "CONSOLE UPPER COVER ")

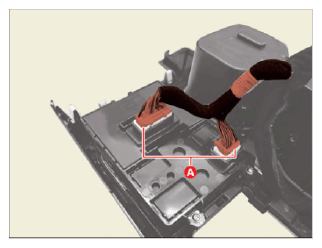

  2. Disconnect the driver parking assistance switch connectors (A).
    G15710797Courtesy of KIA MOTORS AMERICA, INC.

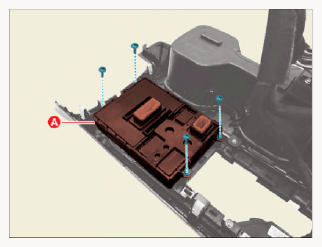

  3. Remove the driver parking assistance switch (A) after removing the screws.
G15710798Courtesy of KIA MOTORS AMERICA, INC.
