Description & Operation: Description

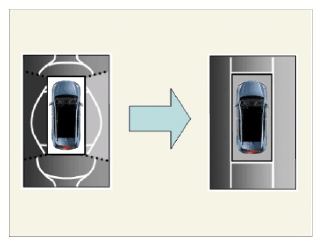

Surround View Monitor (SVM): For safe parking, SVM displays the situation around the vehicle. Changing the gear to R or pressing the Parking/View button, activates SVM. It is possible to select various views through the menu on the left.

Courtesy of KIA MOTORS AMERICA, INC.

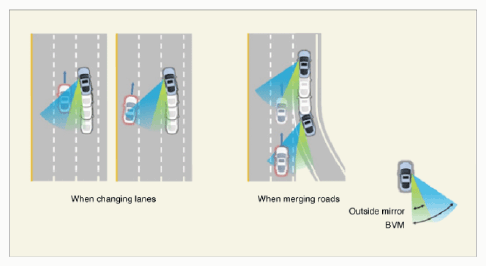

Blind-Spot View Monitor (BVM): When operating the turn signal switch, BVM displays video of the blind-spot view for the direction indicated.

Courtesy of KIA MOTORS AMERICA, INC.

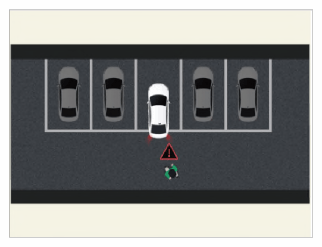

Parking Collision-Avoidance Assist (PCA): If there is a risk of collision with a rear object when moving reverse, PCA provides a warning. After the warning, if the risk of collision increases, PCA automatically assists with emergency braking.

Courtesy of KIA MOTORS AMERICA, INC.

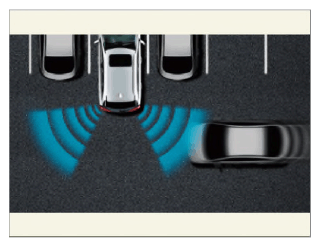

Rear Cross-Traffic Collision-Avoidance Assist (RCCA): If there is a risk of collision with an oncoming vehicle on the left or right side when moving reverse, RCCA provides a warning. After the warning, if the risk of collision increases, RCCA automatically assists with emergency braking.

Courtesy of KIA MOTORS AMERICA, INC.
Rear View Monitor (RVM): For safe parking, RVM displays the situation rear of the vehicle. Changing the gear to R or pressing the Parking/View button, activates RVM.

Courtesy of KIA MOTORS AMERICA, INC.

Parking Distance Warning (PDW): PDW warns against collisions with objects around the vehicle at low speeds. Changing the gear to R or pressing the Parking Safety button in gear D activates PDW.

Warning level	System check	Level 1	Level 2	Level 3
Front	No warning	60 - 100 cm (24.0 - 39.4 in.)	31 - 60 cm (12.2 - 23.6 in.)	0 - 30 cm (0 - 11.8 in.)
Rear	No warning	60 - 120 cm (24.0 - 47.2 in.)	31 - 60 cm (12.2 - 23.6 in.)	0 - 30 cm (0 - 11.8 in.)
Indicator display	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.	Courtesy of KIA MOTORS AMERICA, INC.
