Removal & Installation: Removal
- Before removing the ADAS parking ECU, check the "specification information" first using the KDS.
(S/W Management → Advanced Driver Assistance System_Parking → System Identification)
- Remove the integrated body control unit.
(Refer to Body Electrical System - "INTEGRATED BODY CONTROL UNIT (IBU) ")

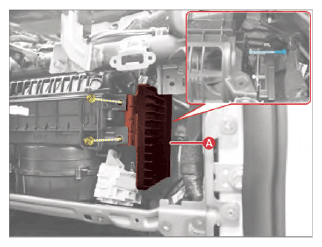

- Remove the ADAS parking ECU (A) after removing the bolt and nuts.
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

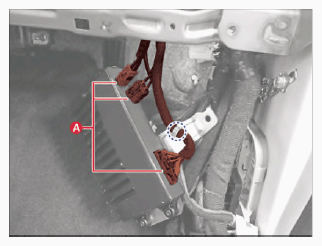

- Disconnect the ADAS parking ECU connectors (A).
Information
Clip position:
