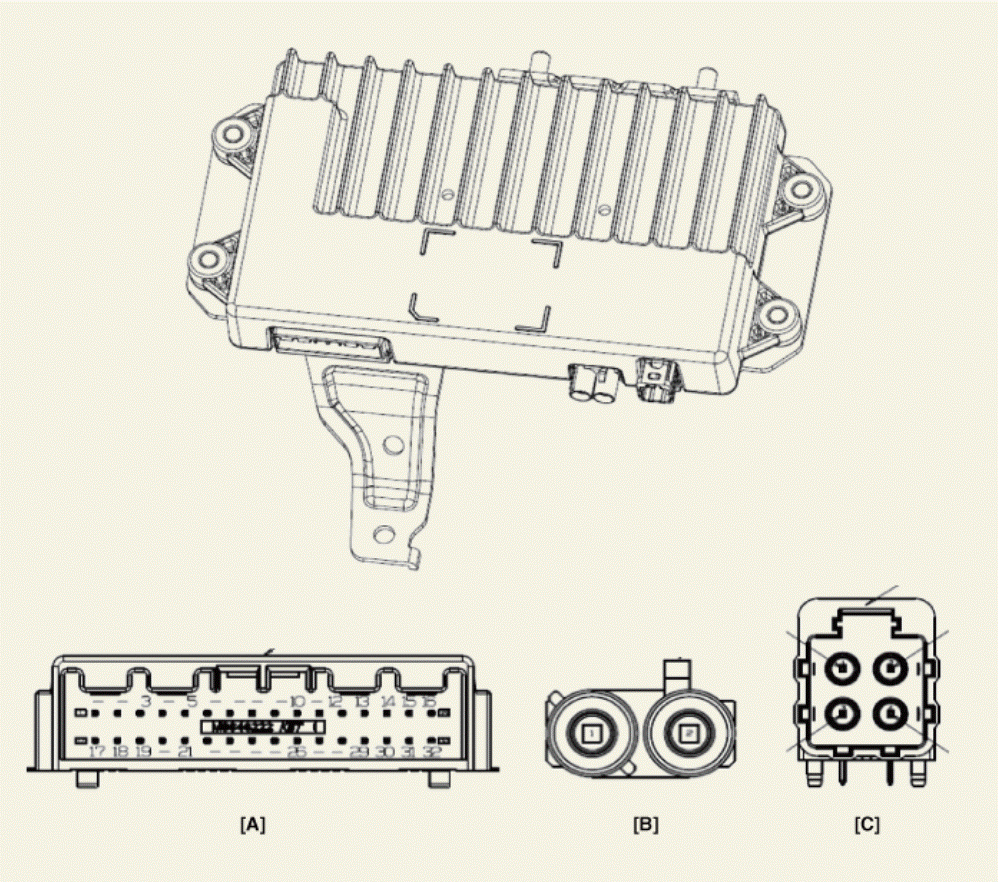

| 1 |
- |
Wide-angle rear view camera signal |
Instrument cluster (Side view video signal) |
| 2 |
- |
Wide-angle front view camera signal |
AVNT head unit (Video signal) |
| 3 |
Battery (+) |
Wide-angle side view camera signal (LH) |
|
| 4 |
- |
Wide-angle side view camera signal (RH) |
| 5 |
Ground |
|
| 6 |
- |
| 7 |
- |
| 8 |
- |
| 9 |
Parking/View button |
| 10 |
- |
| 11 |
- |
| 12 |
Parking safety button indicator |
| 13 |
LIN Front ultrasonic sensor |
| 14 |
LIN Rear ultrasonic sensor |
| 15 |
Front ultrasonic sensor power |
| 16 |
C-CAN (High) |
| 17 |
ACC |
| 18 |
IG 1 |
| 19 |
Battery (+) |
| 20 |
- |
| 21 |
Ground |
| 22 |
- |
| 23 |
- |
| 24 |
- |
| 25 |
Parking safety button |
| 26 |
- |
| 27 |
- |
| 28 |
- |
| 29 |
LIN Rear ultrasonic sensor |
| 30 |
LIN LH ultrasonic sensor |
| 31 |
Rear ultrasonic sensor power |
| 32 |
C-CAN (Low) |
