Removal & Installation: Removal
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

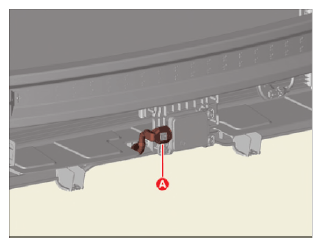

- Disconnect the front radar connector (A).

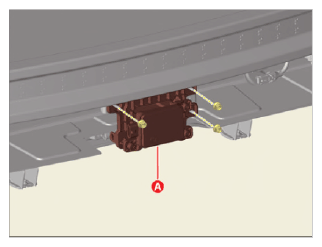

- Remove the front radar (A) after removing the nuts.
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)
