Removal & Installation: Installation
NOTE:
- Check for vehicle alignment and tire pressure for accurate camera calibration.
- Make sure the vehicle does not sag. (Check the suspension problem)
- Put the vehicle on the level ground.
- Check that the front surface of the front radar is clean.

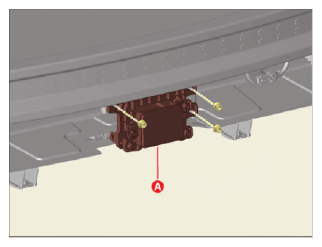

- Install the front radar (A) after tightening the nuts.
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb.ft)

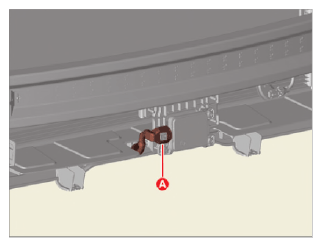

- Connect the front radar connector (A).

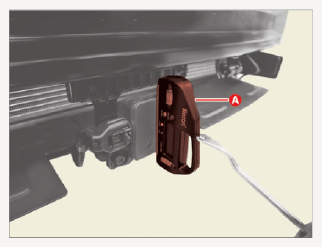

- Check the front radar vertical angle with the digital inclinometer (A).
Horizontal Angle :- 0.8° - 0.8°
Vertical Angle :- 0.4° - 0.4°
NOTE:- The digital inclinometer must be set to a horizontal zero-point before use.
- Note that depending on the display method of the digital inclinometer, the +/- angle may be displayed differently.

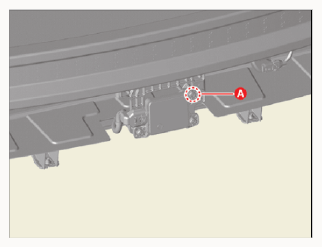

- Adjust to vertical installation angle by turning the adjusting screw (A) of the front radar.
- turn clockwise: adjusting (+) angle
- turn counterclockwise: adjusting (-) angle
NOTE:- Make sure that there is no debris, or reflecting object on the surface of the radar.
- Make sure that there is no debris, or reflecting object on the radiator grille.
- Install the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
- Perform the front radar inspection/calibration procedure by using the SST.
(Refer to Front Radar Unit - "ADJUSTMENT ")
