Removal & Installation: Removal

Read the specification information of the existing front view camera before replacing it with a new one.
(S/W Management → Front View Camera → System Identification)

Information

Refer to the KDS screen for operating conditions and details
Disconnect the battery negative (-) terminal.

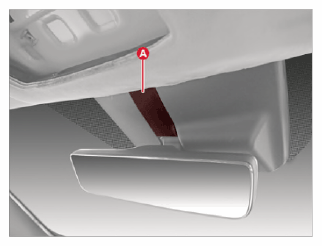

Remove the multi sensor blanking cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

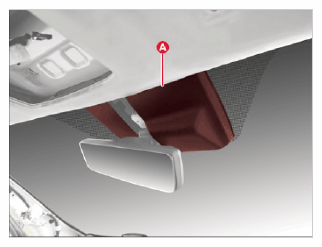

Remove the multi-sensor cover (A) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

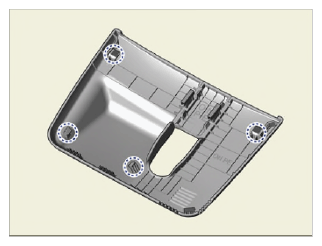

Clip position:

Courtesy of KIA MOTORS AMERICA, INC.

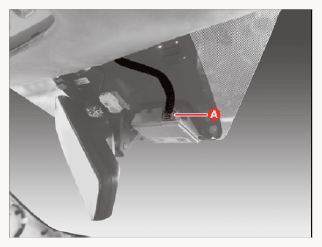

Disconnect the front camera connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

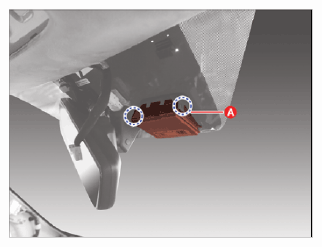

Remove the front camera (A) by pulling both hooks.
NOTE: When removing the fixed hooks be careful not to damage it.

Courtesy of KIA MOTORS AMERICA, INC.
