Service Point Target Auto Calibration (SPTAC) Procedure

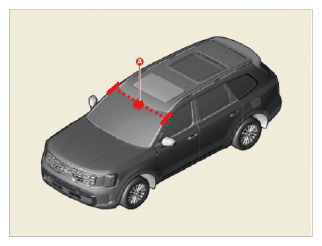

  1. Mark the center point (A) after measuring the distance on top of the windshield glass.
    G15710714Courtesy of KIA MOTORS AMERICA, INC.

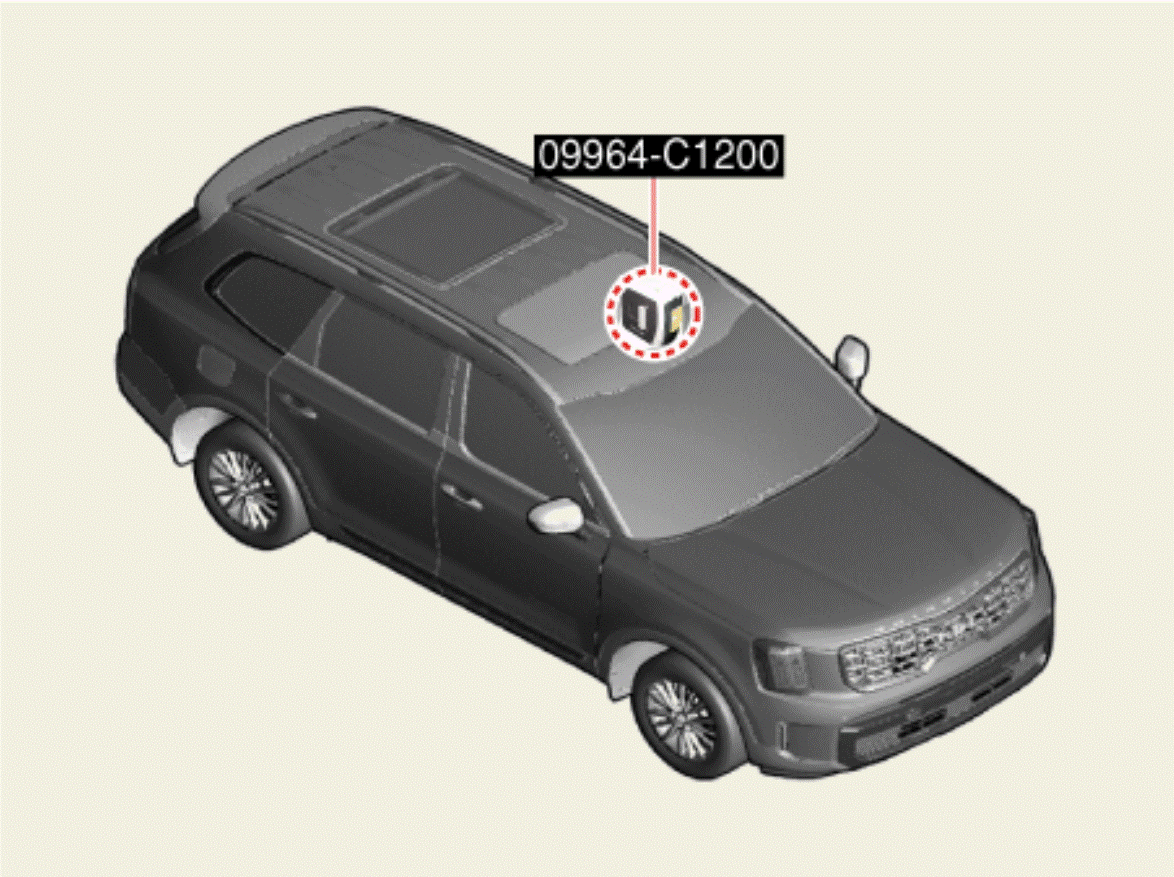

  2. Install the SCC setting beam (09964 - C1200) in the center of the roof above the windshield glass of the vehicle (same for both short and long distance calibrations).
    G15710715Courtesy of KIA MOTORS AMERICA, INC.

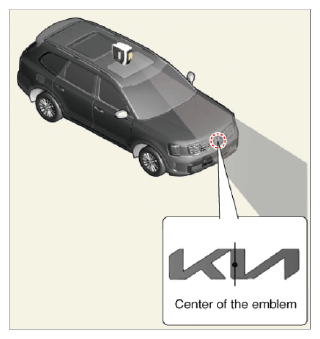

  3. Allow the beam of the SCC setting beam (09964 - C1200) to pass through the center of the emblem.
    G15710716Courtesy of KIA MOTORS AMERICA, INC.

    Information

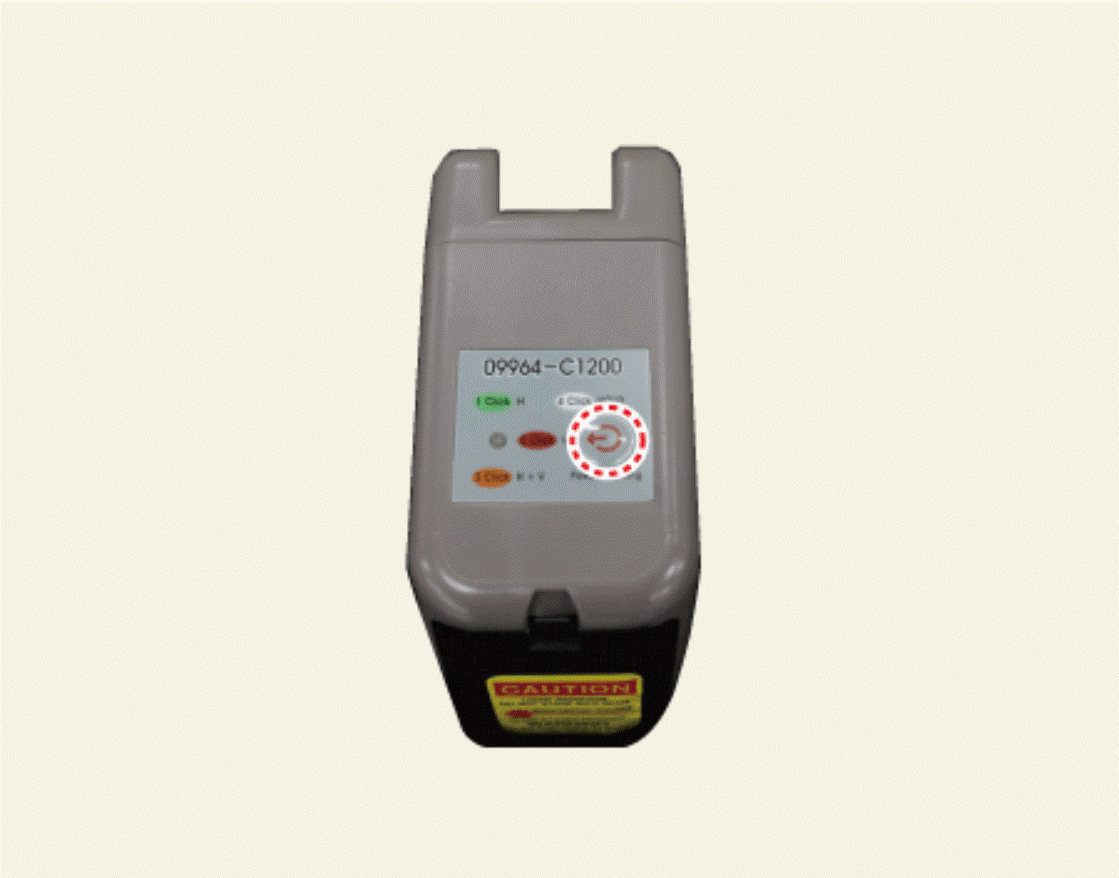

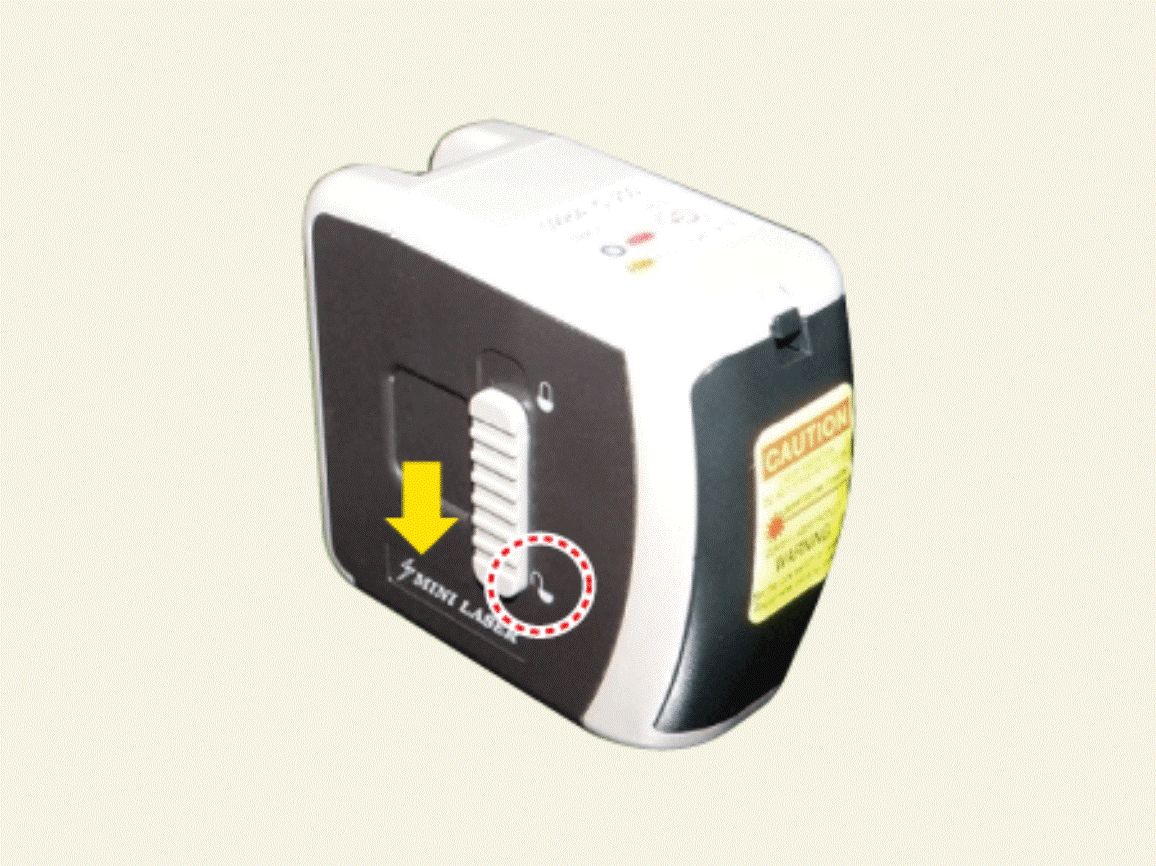

    The level laser must be set to 'ON' and the holding (locking) function is not used.

    G15710717Courtesy of KIA MOTORS AMERICA, INC.
    G15710718Courtesy of KIA MOTORS AMERICA, INC.

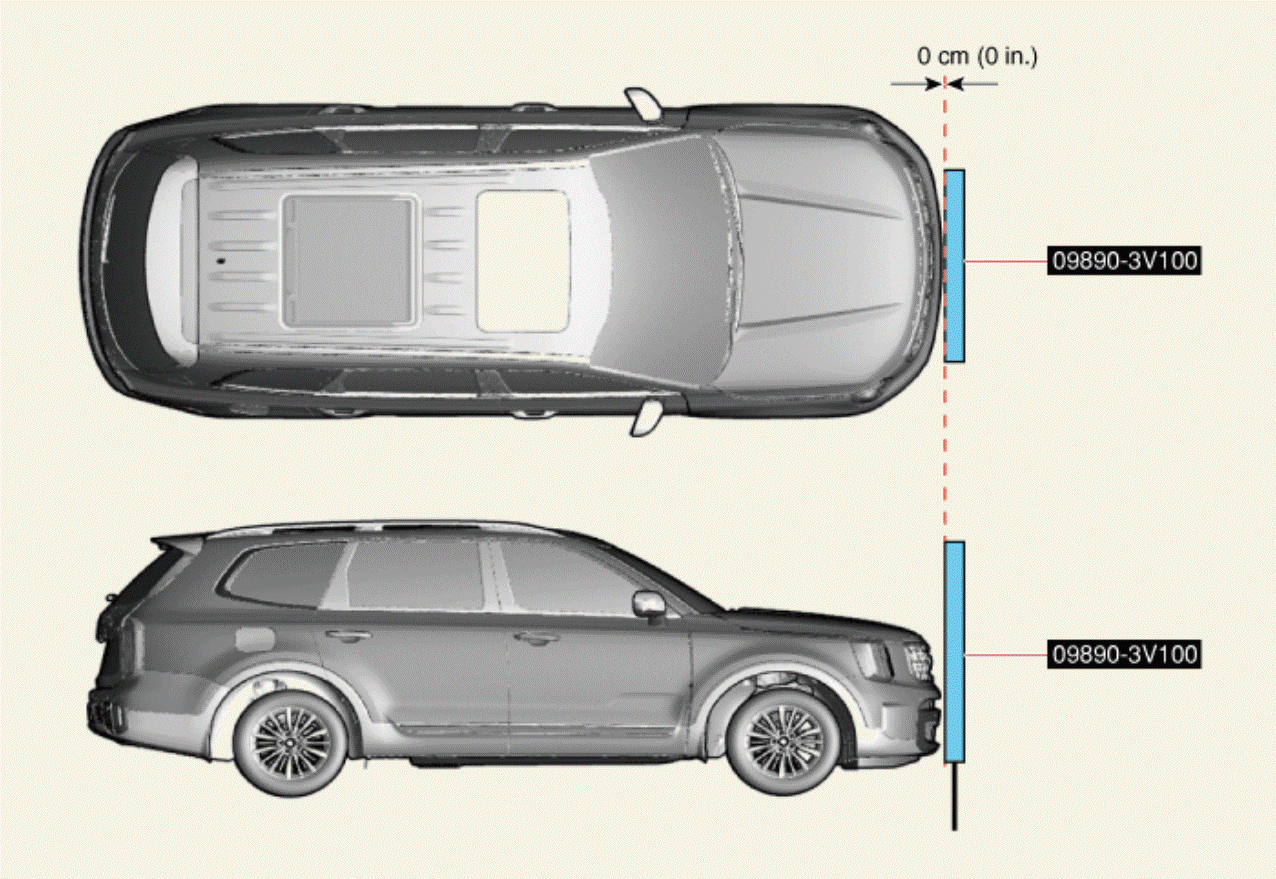

  4. Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 0 cm (0 in.) from the bumper. (Maximum tolerance: 10 cm (4 in.))
    G15710719Courtesy of KIA MOTORS AMERICA, INC.

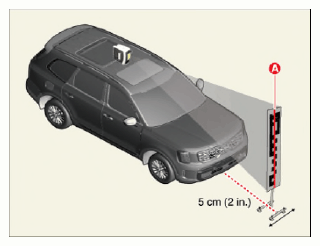

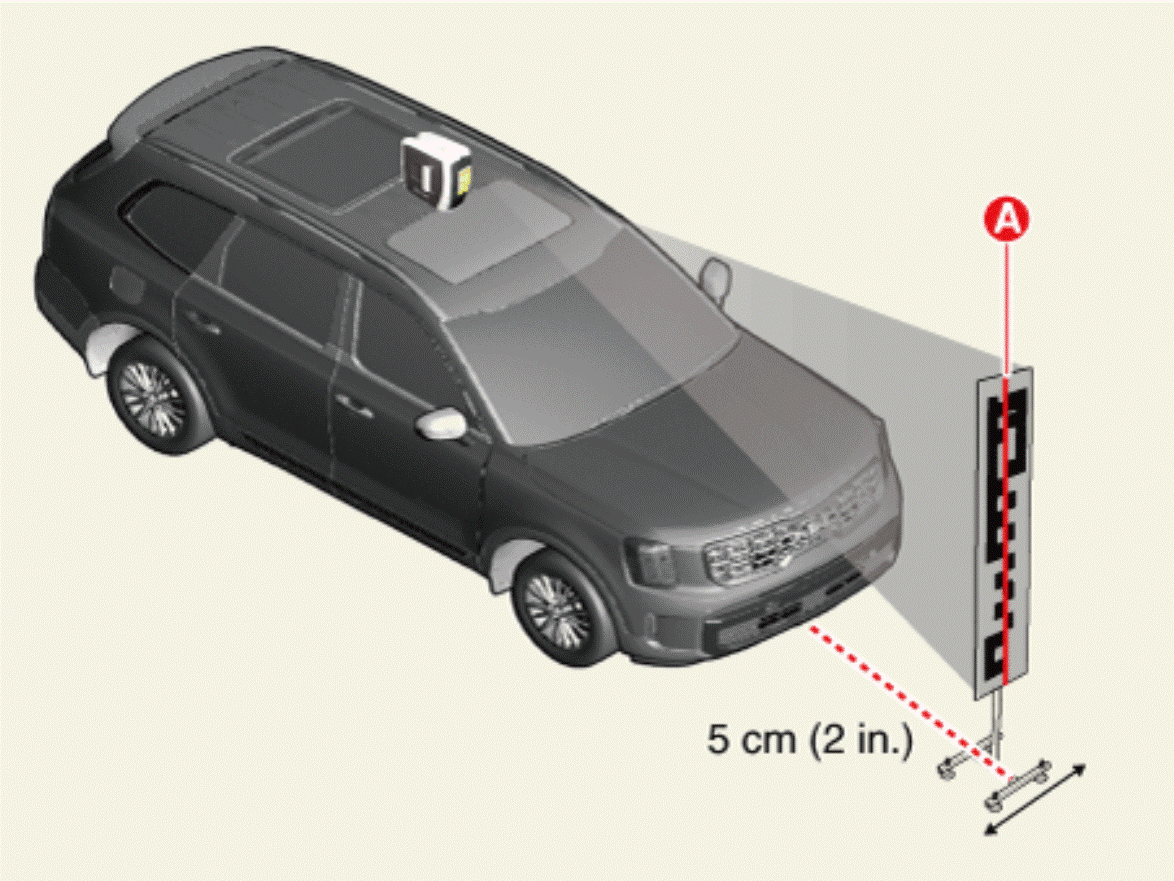

  5. The height of the front view camera calibration target (09890 - 3V100) is adjusted to be 90 ± 2 cm from the ground, and the beam of the SCC setting beam (09964 - 3V1200) is installed to be located at the center (A) of the target. It is positioned so that the center axis of the target coincides with the center axis of the vehicle. [Maximum tolerance: 5cm (2 in)]
    G15710720Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

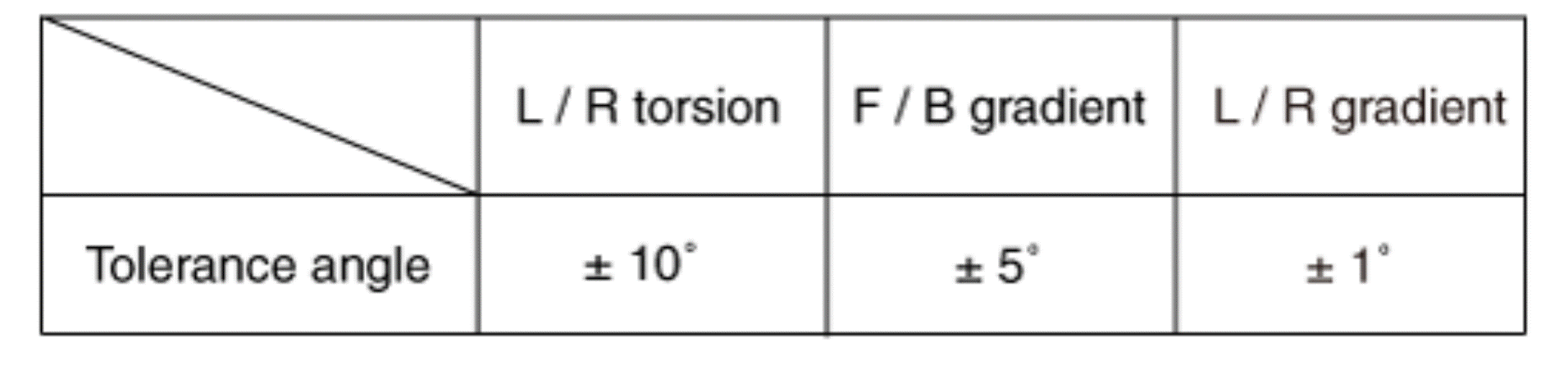

    • Align the front view camera calibration target (09890 - 3V100) referring to the tolerance angle below.
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (± 1°).

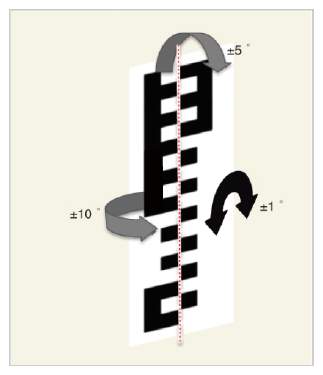

      The left and right tilt tolerance (± 1°) is very important and is sensitively affected by the flatness of the floor.

    G15710721Courtesy of KIA MOTORS AMERICA, INC.
    G15710722Courtesy of KIA MOTORS AMERICA, INC.
  6. Perform the "SPTAC (Service Point Target Auto Calibration)" using the KDS.

    (S/W Management → Front View Camera → SPTAC Calibration)

    Information

    Refer to the KDS screen for operating conditions and details

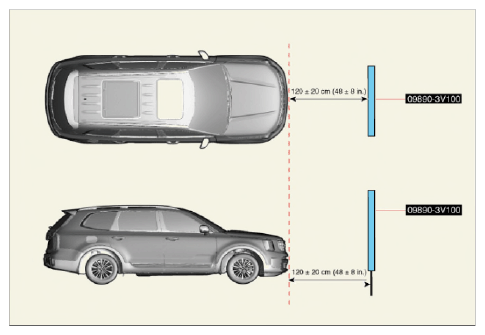

  7. Place the front view camera calibration target (09890 - 3V100) so that it maintains a distance of 120 cm (48 in.) from the bumper. (Maximum tolerance: 20 cm (8 in.))
    G15710723Courtesy of KIA MOTORS AMERICA, INC.
  8. The height of the front view camera calibration target (09890 - 3V100) is adjusted to be 90 ± 2 cm from the ground, and the beam of the SCC setting beam (09964 - 3V1200) is installed to be located at the center (A) of the target. It is positioned so that the center axis of the target coincides with the center axis of the vehicle. [Maximum tolerance: 5cm (2 in)]
    G15710724Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Install the front camera calibration target (09890 - 3V100) perpendicular to the ground, referring to the tolerance angle below.
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (± 1°).

      The left and right tilt tolerance (±1°) is very important and is sensitively affected by the flatness of the floor.

    G15710725Courtesy of KIA MOTORS AMERICA, INC.
    G15710726Courtesy of KIA MOTORS AMERICA, INC.
  9. Perform the "SPTAC (Service Point Target Auto Calibration)" using the KDS.

    (S/W Management → Front View Camera → SPTAC Calibration)

    Information

    Refer to the KDS screen for operating conditions and details

  10. Check the DTC and warning lamp after erasing the DTC using the KDS.
