Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig.1 to 5
G15712911Courtesy of KIA MOTORS AMERICA, INC.

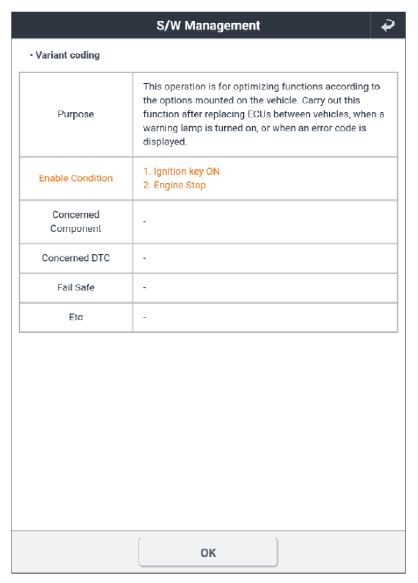

G15712912Courtesy of KIA MOTORS AMERICA, INC.

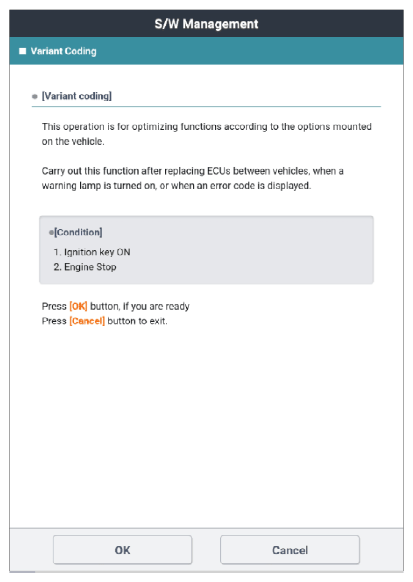

G15712913Courtesy of KIA MOTORS AMERICA, INC.

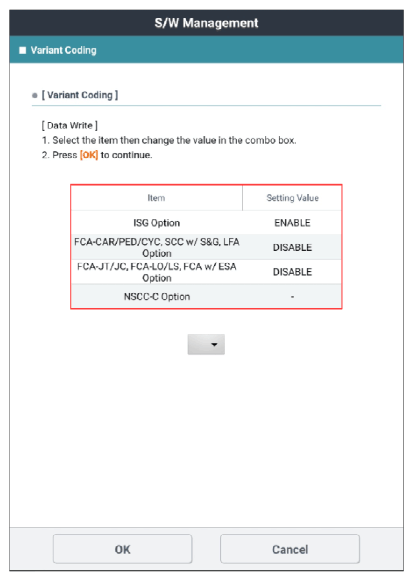

G15712914Courtesy of KIA MOTORS AMERICA, INC.
G15712915Courtesy of KIA MOTORS AMERICA, INC.
