LEMON Manuals: Even more car manuals for everyone
Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Integrated Central Control Unit Diagnosis (1 Of 2) >> DTC B164D-00: CAN Time-Out WPC >> Wiring Inspection >> Circuit Inspection >> Notes

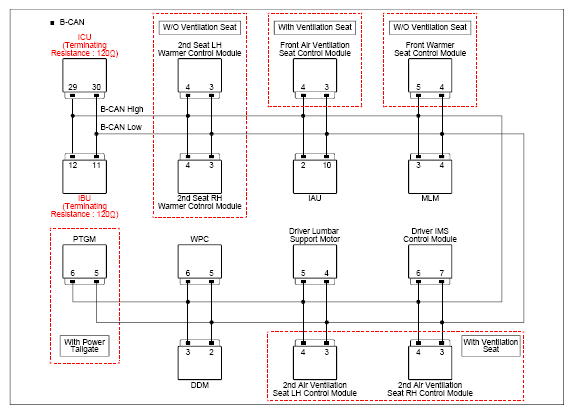

Circuit Inspection: Notes

G15719709Courtesy of KIA MOTORS AMERICA, INC.
