Circuit Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||

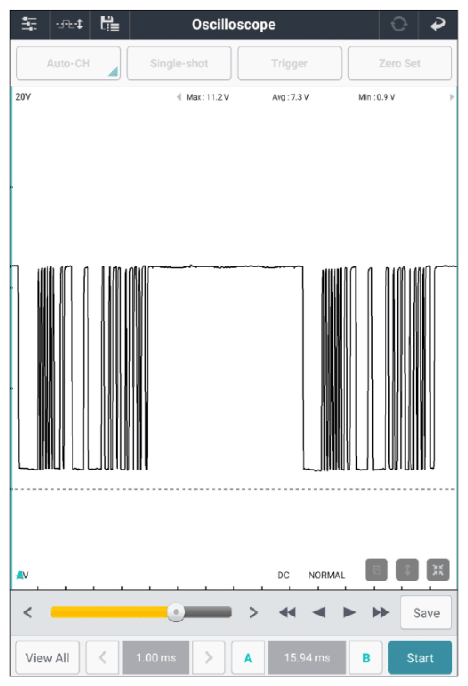

| LIN oscilloscope (ICU) |
|
ICU connector | 13 (LIN) | Chassis ground | - | Fig.1 |
Good
- If no problems were found with the circuits or connectors, replace the 12V battery sensor and Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
