Charging System Inspection
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Charging voltage inspection (Alternator) |
|

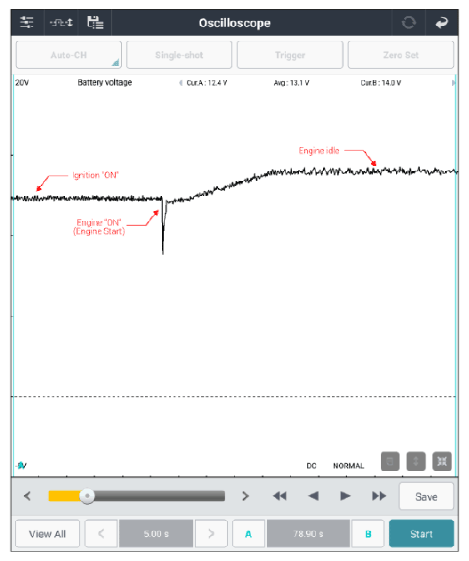

12V battery | (+) | 12V battery | (-) | Fig.1 |
Good
- Go to "MODULE INSPECTION " procedure.
No Good
- Check the charging system and then Go to "VERIFICATION OF REPAIR " procedure.
