LEMON Manuals: Even more car manuals for everyone
Home >> Kia >> 2024 >> Telluride SX X-Line >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Integrated Central Control Unit Diagnosis (1 Of 2) >> DTC B1603-00: CAN Bus Off (B-CAN) >> Wiring Inspection >> Circuit Inspection >> Notes

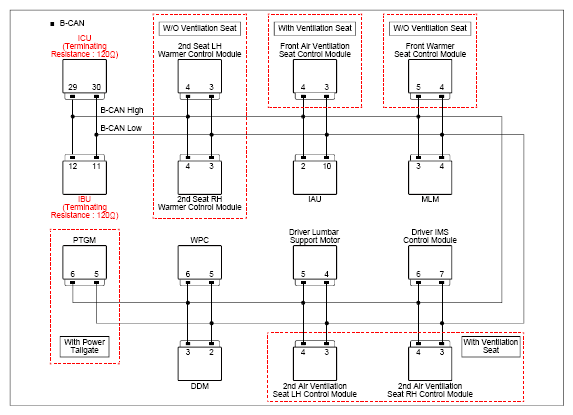

Circuit Inspection: Notes

G15719639Courtesy of KIA MOTORS AMERICA, INC.
